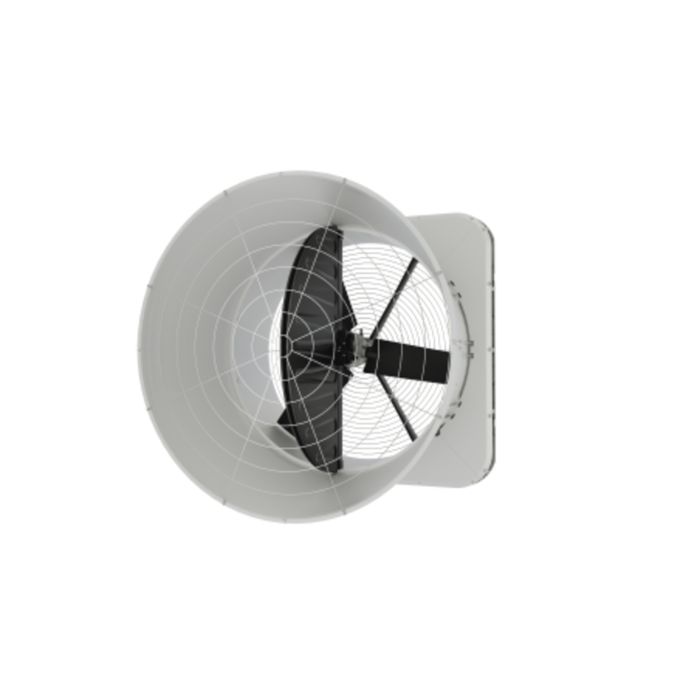

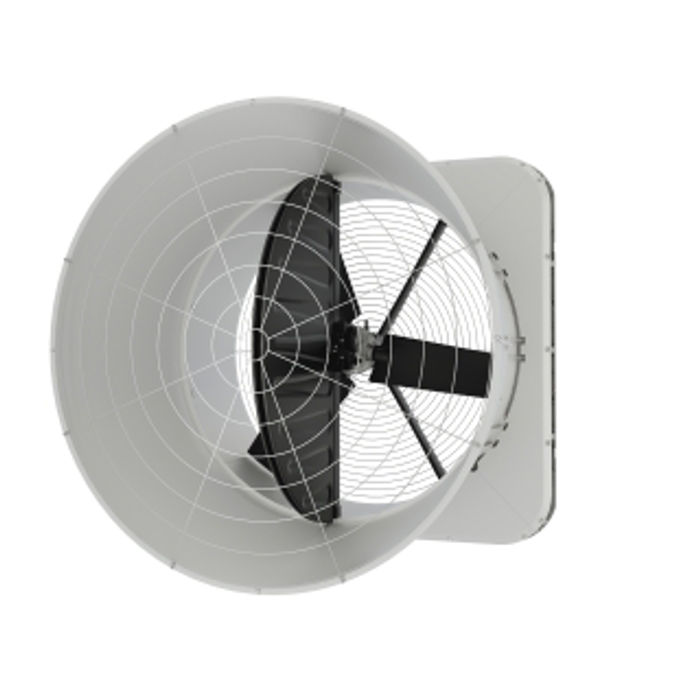

Wall fan AirMaster Blue 140C

Wall fans with high air performance and low power consumption

View details

In stock

Product ID

02020105

This product comes in different variants. You can add a single or multiple variants to the cart.

View variants

Find the matching components for this product.

View components

Details

Big Dutchman has developed the next generation of fans.

The AirMaster Blue 140C has outstanding characteristics in regards to air performance, energy consumption, aerodynamic design and resistance against corrosion.

This unique combination guarantees that our customers have a significant advantage in terms of profitability in climate control. As AirMaster Blue is very pressure stable, it is the perfect choice for long houses.

Variants

Article no.

Product Name

Qty

Action

Article no. 60-25-3718

Fan BD-Blue 140C ON/OFF 230-3-60 10.2A 66300m³/h

Article no. 60-25-3748

Fan BD-Blue 140C ON/OFF 230-3-60 10.2A 66300m³/h ornam.blind

Article no. 60-25-3786

Fan BD-Blue 140C ON/OFF 230-3-60 7.6A 64900m³/h V23

Article no. 60-25-3782

Fan BD-Blue 140C ON/OFF 400-3-50 4.9A 68500m³/h V23

Article no. 60-25-3715

Fan BD-Blue 140C ON/OFF 400-3-50 5.9A 59600m³ Ther

Article no. 60-25-3714

Fan BD-Blue 140C ON/OFF 400-3-50 5.9A 59600m³/h

Article no. 60-25-3744

Fan BD-Blue 140C ON/OFF 400-3-50 5.9A 59600m³/h ornam.blind

Article no. 60-25-3745

Fan BD-Blue 140C ON/OFF 400-3-50 5.9A 59600m³/h ther+orn.bl

Article no. 60-25-3784

Fan BD-Blue 140C ON/OFF 400-3-60 4.3A 64700m³/h V23

Article no. 60-25-3717

Fan BD-Blue 140C ON/OFF 400-3-60 5.9A 65400m³ Ther

Article no. 60-25-3716

Fan BD-Blue 140C ON/OFF 400-3-60 5.9A 65400m³/h

Article no. 60-25-3746

Fan BD-Blue 140C ON/OFF 400-3-60 5.9A 65400m³/h ornam.blind

Article no. 60-25-3747

Fan BD-Blue 140C ON/OFF 400-3-60 5.9A 65400m³/h ther+orn.bl

Article no. 60-25-3729

Fan BD-Blue 140C ON/OFF dualAct 400-3-50 5.9A 59600m³/h

Article no. 60-25-3701

Fan BD-Blue 140C-4 230-1-50/60 4.0A 47100m³/h

Article no. 60-25-3731

Fan BD-Blue 140C-4 230-1-50/60 4.0A 47100m³/h ornam.blind

Article no. 60-25-3702

Fan BD-Blue 140C-4 230-1-50/60 4.0A 47100m³/h Ther

Article no. 60-25-3732

Fan BD-Blue 140C-4 230-1-50/60 4.0A 47100m³/h ther+o.bl

Article no. 60-25-3705

Fan BD-Blue 140C-4 230-3-50/60 3.0A 47100m³/h

Article no. 60-25-3735

Fan BD-Blue 140C-4 230-3-50/60 3.0A 47100m³/h ornam.blind

Article no. 60-25-3703

Fan BD-Blue 140C-4 400-3-50/60 1.4A 47100m³/h

Article no. 60-25-3733

Fan BD-Blue 140C-4 400-3-50/60 1.4A 47100m³/h ornam.blind

Article no. 60-25-3704

Fan BD-Blue 140C-4 400-3-50/60 1.4A 47100m³/h Ther

Article no. 60-25-3734

Fan BD-Blue 140C-4 400-3-50/60 1.4A 47100m³/h ther+o.bl

Article no. 60-25-3706

Fan BD-Blue 140C-5 230-1-50/60 6.5A 55700m³/h

Article no. 60-25-3736

Fan BD-Blue 140C-5 230-1-50/60 6.5A 55700m³/h ornam.blind

Article no. 60-25-3707

Fan BD-Blue 140C-5 230-1-50/60 6.5A 55700m³/h Ther

Article no. 60-25-3737

Fan BD-Blue 140C-5 230-1-50/60 6.5A 55700m³/h ther+orn.bl

Article no. 60-25-3710

Fan BD-Blue 140C-5 230-3-50/60 4.4A 55700m³/h

Article no. 60-25-3740

Fan BD-Blue 140C-5 230-3-50/60 4.4A 55700m³/h ornam.blind

Article no. 60-25-3708

Fan BD-Blue 140C-5 400-3-50/60 2.3A 55700m³/h

Article no. 60-25-3738

Fan BD-Blue 140C-5 400-3-50/60 2.3A 55700m³/h ornam.blind

Article no. 60-25-3709

Fan BD-Blue 140C-5 400-3-50/60 2.3A 55700m³/h Ther

Article no. 60-25-3739

Fan BD-Blue 140C-5 400-3-50/60 2.3A 55700m³/h ther+orn.bl

Article no. 60-25-3770

Fan BD-Blue 140C-6 230-1-50/60 5.7A 54500m³/h V23

Article no. 60-25-3778

Fan BD-Blue 140C-6 230-3-50/60 6.1A 65800m³/h V23

Article no. 60-25-3743

Fan BD-Blue 140C-6 230-3-50/60 6.3A 65800m³/h ornam.blind

Article no. 60-25-3713

Fan BD-Blue 140C-6 230-3-50/60 6.3A 66000m³/h

Article no. 60-25-3772

Fan BD-Blue 140C-6 400-3-50/60 3.5A 65800m³/h V23

Article no. 60-25-3774

Fan BD-Blue 140C-6 400-3-50/60 3.5A 65800m³/h V23 w/ther

Article no. 60-25-3712

Fan BD-Blue 140C-6 400-3-50/60 3.6A 65800m³/ Ther

Article no. 60-25-3711

Fan BD-Blue 140C-6 400-3-50/60 3.6A 65800m³/h

Article no. 60-25-3741

Fan BD-Blue 140C-6 400-3-50/60 3.6A 65800m³/h ornam.blind

Article no. 60-25-3742

Fan BD-Blue 140C-6 400-3-50/60 3.6A 65800m³/h ther+orn.bl

Article no. 60-25-3728

Fan BD-Blue 140C-6 dualAct 400-3-50/60 3.6A 65800m³/h

Article no. 60-25-3780

Fan BD-Blue 140C-7 230-3-50/60 7.9A 72700m³/h V23

Article no. 60-25-3776

Fan BD-Blue 140C-7 400-3-50/60 4.7A 72500m³/h V23

Article no. 60-25-3727

Fan BD-Blue 140C-7F 230-1-50/60 8.5A 53200m³ ornam.

Article no. 60-25-3726

Fan BD-Blue 140C-7F 230-1-50/60 8.5A 53200m³/h

Components

Diffusoren

Article no.

Product Name

Qty

Action

Article no. 60-25-4397

Diffuser quarter f/BD-Blue 140C

Elektromotoren

Article no.

Product Name

Qty

Action

Article no. 81-40-6420

Bushing motor bracket for Airmaster Blue 140C

Article no. 60-25-4400

Circuit board and motor f/shutter BD-Blue 140C

Article no. 90-00-1523

E-motor 1.30kW 1Ph 50/60Hz 230V 3.9A f/BD-Blue 140C w/therm

Article no. 60-25-3761

E-motor 1.5hp 3Ph 400V f/BD-Blue 140C-6-T V23 ON/OFF

Article no. 60-25-3760

E-motor 1.5hp 3Ph 50/60Hz 400V f/BD-Blue 140C-6 V23 ON/OFF

Article no. 90-00-1541

E-Motor 1.5kW 1Ph 50/60Hz 230V f/BD-Blue 140C-6 V23

Article no. 60-25-3759

E-motor 1.8kW 3Ph 50/60Hz 230V f/BD-Blue 140C-6 V23

Article no. 60-25-3757

E-motor 1.8kW 3Ph 50/60Hz 400V f/BD-Blue 140C-6 V23

Article no. 60-25-3758

E-Motor 1.8kW 3Ph 50/60Hz 400V f/BD-Blue 140C-6-T V23

Article no. 90-00-1539

E-Motor 2.2kW 3Ph 50/60 400V 5.9A f/BD-Blue140C ON/OFF Therm

Article no. 90-00-1526

E-Motor 2.2kW 3Ph 50/60Hz 230V 10.2A f/BD-Blue 140C ON/OFF

Article no. 90-00-1530

E-Motor 2.2kW 3Ph 50/60Hz 400V 5.9A f/BD-Blue 140C ON/OFF

Article no. 90-00-1524

E-motor 2.30kW 3Ph 50/60Hz 400V 4.1A f/BD-Blue 140C w/therm

Article no. 90-00-1525

E-motor 2.3kW 3Ph 230V 50/60Hz 6.4A f/BD-Blue 140C

Article no. 60-25-3756

E-motor 2.5kW 3Ph 50/60Hz 230V f/BD-Blue 140C-7 V23

Article no. 60-25-3755

E-motor 2.5kW 3Ph 50/60Hz 400V f/BD-Blue 140C-7 V23

Article no. 60-25-3768

E-motor 3.0hp 3Ph 230V f/BD-Blue 140C V23 ON/OFF

Article no. 60-25-3767

E-motor 3.0hp 3Ph 400V f/BD-Blue 140C V23 ON/OFF

Article no. 90-00-1520

Electric motor 1.30kW 1Ph 50/60Hz 230V 3.9A f/BD/Blue 140C

Article no. 90-00-1540

Electric motor 1.8kW 3Ph 50/60Hz 400V f/BD-Blue 125-T

Article no. 90-00-1522

Electric motor 2.30kW 3Ph 50/60Hz 400V 4.1A f/BD/Blue 140C

Article no. 60-25-4377

Motor cable f/BD-Blue 140C ON/OFF w/thermal cut-out

Article no. 60-25-4376

Motor cable f/BD-Blue 140C ON/OFF wo/thermal cut-out

Article no. 60-25-4375

Motor cable f/BD-Blue 140C-4/-5/-6 w/thermal cut-out

Article no. 60-25-4374

Motor cable f/BD-Blue 140C-4/-5/-6 wo/thermal cut-out

Article no. 60-25-4396

Motor f/shutter BD-Blue 140C

Article no. 60-25-4394

Motor mount f/BD-Blue 140C

Article no. 60-25-4379

Motor mount f/shutter BD-Blue 140C

Article no. 60-25-4399

Pipe quarter with motor mount f/BD-Blue 140C

Article no. 60-25-4398

Pipe quarter without motor mount f/BD-Blue 140C

Ersatzteile

Article no.

Product Name

Qty

Action

Article no. 81-41-5883

Actuator parts for flap /BD-Blue 140C

Article no. 60-25-4451

Bottom brack f/center brace plastic BD-Blue 140C(from 01/20)

Article no. 60-25-4449

Center brace alu f/shutter BD-Blue 140C

Article no. 83-52-6529

Center brace alu f/shutter BD-Blue 140C cpl (from 01/20)

Article no. 60-25-4441

Connector set motor flap f/fan BD-Blue 140C ON/OFF

Article no. 60-25-4440

Connector set motor flap f/fan BD-Blue 140C-4/-5/-6

Article no. 60-50-3016

Control box f/e-motor BD-Blue 140C 465r 1Ph 230V

Article no. 60-50-3017

Control box f/e-motor BD-Blue 140C 550r 1Ph 230V

Article no. 60-25-4386

Cover caps f/motor mount f/shutter BD-Blue 140C

Article no. 90-00-1523

E-motor 1.30kW 1Ph 50/60Hz 230V 3.9A f/BD-Blue 140C w/therm

Article no. 90-00-1539

E-Motor 2.2kW 3Ph 50/60 400V 5.9A f/BD-Blue140C ON/OFF Therm

Article no. 90-00-1526

E-Motor 2.2kW 3Ph 50/60Hz 230V 10.2A f/BD-Blue 140C ON/OFF

Article no. 90-00-1530

E-Motor 2.2kW 3Ph 50/60Hz 400V 5.9A f/BD-Blue 140C ON/OFF

Article no. 90-00-1524

E-motor 2.30kW 3Ph 50/60Hz 400V 4.1A f/BD-Blue 140C w/therm

Article no. 90-00-1525

E-motor 2.3kW 3Ph 230V 50/60Hz 6.4A f/BD-Blue 140C

Article no. 90-00-1520

Electric motor 1.30kW 1Ph 50/60Hz 230V 3.9A f/BD/Blue 140C

Article no. 90-00-1522

Electric motor 2.30kW 3Ph 50/60Hz 400V 4.1A f/BD/Blue 140C

Article no. 60-25-4387

Intake nozzle quarter f/BD-Blue 140C

Article no. 60-25-4452

Lock f/shutter plastic BD-Blue 140C (from 01/20)

Article no. 60-41-1846

Mounting set f/BD-Blue 140C

Article no. 81-43-2888

Parts for 170C-hybrid test Columbia

Article no. 81-43-2887

Parts for 170C-hybrid test USA

Article no. 60-40-9245

Repair piece bottom f/shutter SST BD-Blue 140C

Article no. 60-40-9244

Repair piece top f/shutter SST BD/Blue 140C

Article no. 81-44-9915

Retrofit kit DA 1700 shutter, raw

Article no. 60-25-3723

Spring set f/5x BD-Blue 140C ON/OFF

Article no. 99-50-3961

Support metal adjust. cpl f/thin wall f/fan 140C

Article no. 60-25-4450

Top bracket f/center brace plastic BD-Blue 140C (from 01/20)

Flügelsätze

Article no.

Product Name

Qty

Action

Article no. 60-48-4823

Blade kit f/BD-Blue ON/OFF 50Hz kit = 3 blades

Article no. 60-48-4825

Blade kit f/fan BD-Blue adjustable 50/60Hz kit = 3 blades

Article no. 60-48-4824

Blade kit f/fan BD-Blue ON/OFF 60Hz kit = 3 blades

Article no. 60-25-3764

Impeller 1.5hp f/BD Blue 140C-6 ON/OFF V23

Article no. 60-25-3762

Impeller f/BD Blue 140C ON/OFF 50Hz V23 (36°)

Article no. 60-25-3763

Impeller f/BD Blue 140C-7 V23 (47°)

Article no. 60-48-4832

Impeller f/BD-Blue (45°)

Article no. 60-48-4834

Impeller unassembled f/BD-Blue adjustab 50/60Hz 3 blades V20

Article no. 60-48-4833

Impeller unassembled f/BD-Blue ON/OFF 60Hz 3 blades V20

Gehäuseeinheiten

Article no.

Product Name

Qty

Action

Article no. 60-25-4478

Frame unit cpl f/BD-Blue 140C ON/OFF 1Ph wo/ornamental blind

Article no. 60-25-4474

Frame unit cpl f/BD-Blue 140C ON/OFF 50Hz duAct w/orna.blind

Article no. 60-25-4498

Frame unit cpl f/BD-Blue 140C ON/OFF 50Hz w/ornamental blind

Article no. 60-25-4480

Frame unit cpl f/BD-Blue 140C ON/OFF 60Hz w/ornamental blind

Article no. 60-25-4484

Frame unit cpl f/BD-Blue 140C-4 230V 1Ph w/ornamental blind

Article no. 60-25-4481

Frame unit cpl f/BD-Blue 140C-4 230V 1Ph wo/ornamental blind

Article no. 60-25-4486

Frame unit cpl f/BD-Blue 140C-4 230V 3Ph w/ornamental blind

Article no. 60-25-4483

Frame unit cpl f/BD-Blue 140C-4 230V 3Ph wo/ornamental blind

Article no. 60-25-4485

Frame unit cpl f/BD-Blue 140C-4 400V 3Ph w/ornamental blind

Article no. 60-25-4482

Frame unit cpl f/BD-Blue 140C-4 400V 3Ph wo/ornamental blind

Article no. 60-25-4490

Frame unit cpl f/BD-Blue 140C-5 230V 1Ph w/ornamental blind

Article no. 60-25-4487

Frame unit cpl f/BD-Blue 140C-5 230V 1Ph wo/ornamental blind

Article no. 60-25-4492

Frame unit cpl f/BD-Blue 140C-5 230V 3Ph w/ornamental blind

Article no. 60-25-4489

Frame unit cpl f/BD-Blue 140C-5 230V 3Ph wo/ornamental blind

Article no. 60-25-4491

Frame unit cpl f/BD-Blue 140C-5 400V 3Ph w/ornamental blind

Article no. 60-25-4488

Frame unit cpl f/BD-Blue 140C-5 400V 3Ph wo/ornamental blind

Article no. 60-25-4496

Frame unit cpl f/BD-Blue 140C-6 230V 3Ph w/ornamental blind

Article no. 60-25-4494

Frame unit cpl f/BD-Blue 140C-6 230V 3Ph wo/ornamental blind

Article no. 60-25-4473

Frame unit cpl f/BD-Blue 140C-6 400V 3Ph duAct w/ornam.blind

Article no. 60-25-4495

Frame unit cpl f/BD-Blue 140C-6 400V 3Ph w/ornamental blind

Article no. 60-25-4493

Frame unit cpl f/BD-Blue 140C-6 400V 3Ph wo/ornamental blind

Article no. 60-25-4479

Frame unit cpl f/BD-Blue 170C ON/OFF 1Ph w/ornamental blind

Article no. 60-25-4497

Frame unit cpl f/BD-Blue140C ON/OFF 50Hz wo/ornamental blind

Article no. 60-25-4499

Frame unit cpl f/BD-Blue140C ON/OFF 60Hz wo/ornamental blind

Article no. 81-41-3508

Frame unit f/170C-6 220V 3Ph wo/conus and shutter

Article no. 60-25-4618

Housing unit f/BD-Blue 140C-6 1 pc. V23

Article no. 60-25-4619

Housing unit f/BD-Blue 140C-6 2 pcs. V23

Article no. 60-25-3753

Housing unit f/BD-Blue 140C-7 / ON/OFF 1 pc V23

Article no. 60-25-3754

Housing unit f/BD-Blue 140C-7 / ON/OFF 2 pcs V23

Isolierplatten

Article no.

Product Name

Qty

Action

Article no. 60-47-4441

Bracket f/insulating plate f/BD-Blue 140C

Article no. 60-43-3508

Insulating kit f/Insulating plate BD-Blue 140C

Article no. 60-21-1413

Insulating plate f/BD-Blue 130 cpl

Article no. 60-47-4440

Insulating plate f/BD-Blue 140C

Article no. 60-25-3721

Insulating plate f/BD-Blue 140C cpl

Article no. 60-25-3775

Insulating plate f/BD-Blue 140C cpl V23

Article no. 60-47-4446

Insulating plate w/sealing lip f/BD-Blue 140C

Konuse

Article no.

Product Name

Qty

Action

Article no. 60-25-3724

Storm protection f/BD-Blue 140C f/safety guard cone

Article no. 60-25-3725

Storm protection f/BD-Blue 140C wo/safety guard cone

Article no. 60-25-3722

Wire mesh cone cpl f/BD-Blue 140C/Flex

Article no. 81-43-2229

Wire mesh cone cpl f/BF50

Montagematerialien

Article no.

Product Name

Qty

Action

Article no. 83-55-6057

Bracket 3mm galv f/insulation plate Flex 140C

Article no. 60-25-4392

Mounting kit f/wire mesh guard inside BD-Blue 140C

Article no. 60-25-4393

Mounting kit f/wire mesh guard outside BD-Blue 140C

Article no. 60-25-3765

Mounting parts f/BD-Blue 140C V23

Article no. 60-25-4389

Mounting parts f/motor BD-Blue 140C

Article no. 60-43-3510

Mounting screws f/insulation plate 140C

Article no. 60-21-1107

Screw set brace ALU f/shutter f/BD-Blue 140C

Article no. 60-21-1108

Screw set brace SS f/shutter f/BD/Blue 140C

Article no. 60-21-1106

Screw set f/BD-Blue 140C

Article no. 60-21-1105

Screw set for guard mesh wire cone BD-Blue 140C

Article no. 60-43-3509

Sealing f/insulation plate 140C

Article no. 25-17-8779

Sealing tape ISO-BLOCO 15/6-15 grey 4.3m

Regler für Elektromotoren

Article no.

Product Name

Qty

Action

Article no. 60-25-3766

Control box f/e-motor 1.8kW BD-Blue 140C-6 3Ph 230V V23

Article no. 60-50-3018

Control box f/e-motor BD-Blue 140C 465r 3Ph 400V

Article no. 60-50-3016

Control box f/e-motor BD-Blue 140C 465r 1Ph 230V

Article no. 60-50-3015

Control box f/e-motor BD-Blue 140C 465rpm 3Ph 230V

Article no. 60-50-3017

Control box f/e-motor BD-Blue 140C 550r 1Ph 230V

Article no. 60-50-3014

Control box f/e-motor BD-Blue 140C 550r 3Ph 230V

Article no. 60-50-3019

Control box f/e-motor BD-Blue 140C 550r 3Ph 400V

Article no. 60-50-3021

Control box f/e-motor BD-Blue 140C 650r 3Ph 230V

Article no. 60-50-3020

Control box f/e-motor BD-Blue 140C 650r 3Ph 400V

Article no. 60-25-3752

Control box f/e-motor BD-Blue 140C-7 1Ph 230V V23

Article no. 60-25-3751

Control box f/e-motor BD-Blue 140C-7 3Ph 400V V23

Article no. 60-25-3749

Control box f/e-motor BD-Blue V140C-6 1Ph 230V V23

Article no. 60-25-3750

Control box f/e-motor BD-Blue V140C-6 3Ph 400V V23

SAN

Article no.

Product Name

Qty

Action

Article no. 80-01-6701

Casing part galv VC140 Butterfly

Article no. 81-45-3056

Frame unit cpl f/BD-Blue 140C-6 230V 3Ph w/orna wo/controlle

Article no. 81-45-3075

Frame unit cpl f/BD-Blue 140C-6 230V 3Ph wo/shutter

Article no. 81-45-4160

Frame unit cpl f/BD-Blue 140C-6 400V 3Ph duAct w/ornaB wo/FC

Article no. 81-45-3055

Frame unit cpl f/BD-Blue 140C-6 400V 3Ph w/orna wo/controlle

Article no. 81-45-3073

Frame unit cpl f/BD-Blue 140C-6 400V 3Ph wo/shutter

Article no. 81-46-1724

Lock f/shutter plastic BD-Blue 140C (from 01/20)

Article no. 81-46-2392

Repair kit shutter BD-Blue 140C (up to V23)

Article no. 86-02-3964

Screw kit f/shutter LPC/AC f/DA 1700

Article no. 82-90-4205

Screw set f/BD-Blue 140C for masonry wall

Article no. 82-90-4206

Screw set f/BD-Blue 140C for steel and sandwich panel wall

Schmetterlingsklappen

Article no.

Product Name

Qty

Action

Article no. 60-25-4378

Adjustment mechanism f/shutter BD-Blue 140C-4/-5/-6

Article no. 99-50-3956

Magnet kit f/shutter of fan 140C

Article no. 60-40-9245

Repair piece bottom f/shutter SST BD-Blue 140C

Article no. 60-40-9244

Repair piece top f/shutter SST BD/Blue 140C

Article no. 60-25-4475

Retrofit kit dualAct f/shutter BD-Blue 140C

Article no. 60-25-4395

Shutter half f/BD-Blue 140C

Article no. 60-25-4448

Shutter mechanism BD-Blue 140C ON/OFF (from 01/20)

Article no. 60-25-4447

Shutter mechanism BD-Blue 140C-4/-5/-6 (from 01/20)

Schutzgitter

Article no.

Product Name

Qty

Action

Article no. 60-25-0305

Wire mesh guard f/fan BD-Blue 140 cpl

Zierblenden

Article no.

Product Name

Qty

Action

Article no. 91-00-4394

Ornamental blinds (1/4) f/BD-Blue 140C

Article no. 60-25-3720

Ornamental blinds cpl for BD-Blue 140C

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
