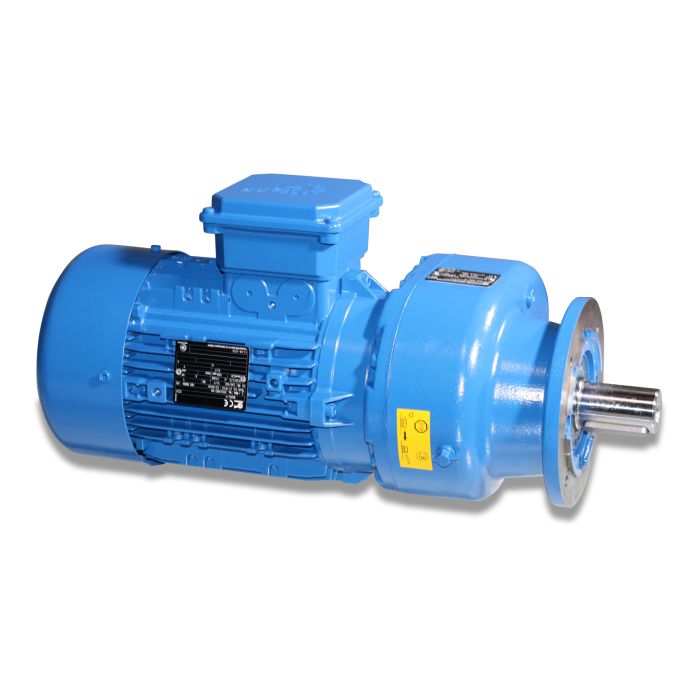

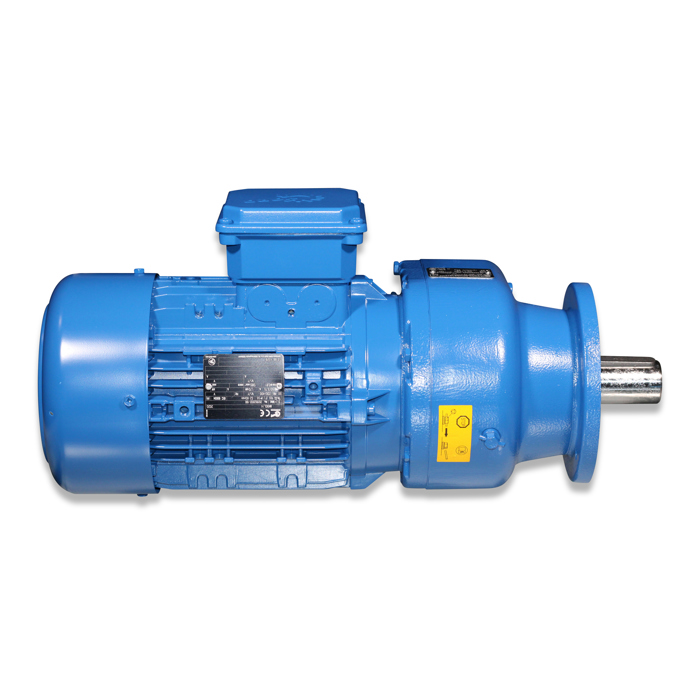

Mot-g 1.70 230/400 50/60Hz 3PH 31/37.5r shaft 35x58

SKU

10-88-4029

Sales unit 1 pc

Spare parts for this article can be found in our spare parts finder.

Dimensions
Length	477.00	mm
Width	245.00	mm
Height	296.00	mm
Actual weight	31.515	kg

Basic data
Running mode	S2 Minuten	S1-S10
Motor size	90L

Rated values
Phases	3	Anzahl
Frequency	50/60	Hz
Pole pair	2
Permiss. ambient temp. during operation	40	°C

Classification
Wirkungsgradklasse	IE1	IE1-IE5
IP protection rating	IP55	IP
Insulation class	F

Dimensions
Output shaft length	58	Länge mm

Rated values 50 Hz
Nominal power	1,5	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Gear speed	31	r/min

Rated values 60 Hz
Nominal power	1,73	kW
Nominal voltage delta connection	265	V
Nominal voltage star connection	460	V
