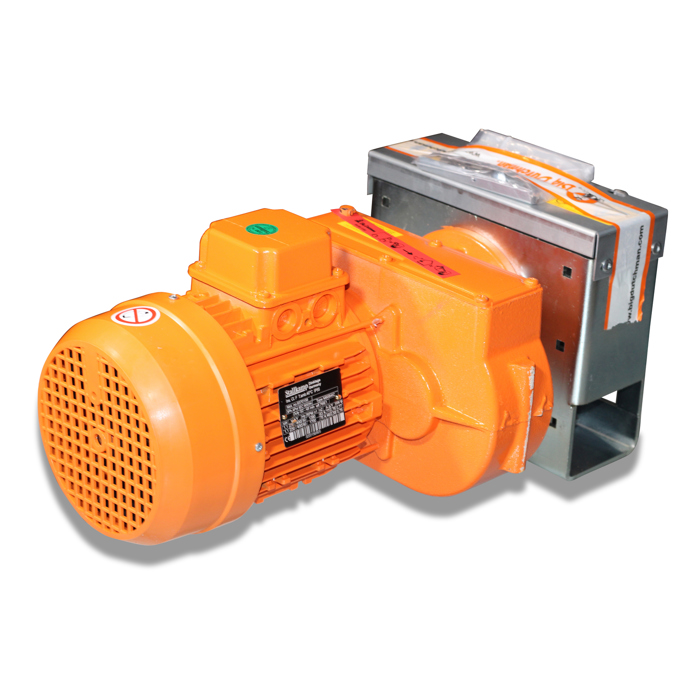

Drive MPF 1-L 36m 1.10KW ccw 230/400V 3PH 50Hz

SKU

10-93-5022

Sales unit 1 pc

Dimensions
Length	518.00	mm
Width	293.00	mm
Height	261.00	mm
Actual weight	35.487	kg

Basic data
Number of lines / circuits	1-B

Rated values
Nominal frequency [Hz]	50/60
Conveying speed	50/60	m/min

Rated values 50 Hz
Nominal power	1,1	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption delta connection	4,49	A
Current consumption star connection	2,6	A

Rated values 60 Hz
Nominal power	1,1	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption delta connection	4,49	A
Current consumption star connection	2,6	A

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
