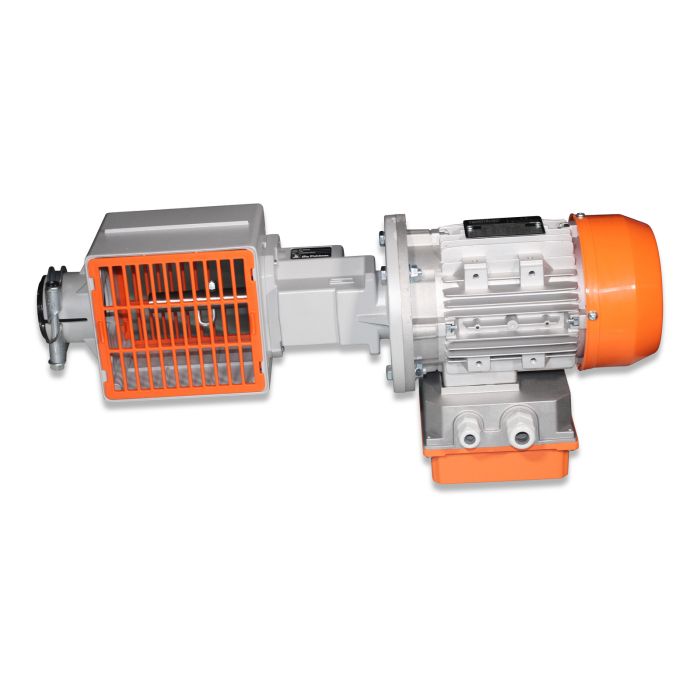

Drive 0.55kW 230/400V 50Hz 3Ph AM6-R-R w/switch box
SKU
11-03-3753
Sales unit 1 pc
Dimensions | ||
Length | 573.00 | mm |
Width | 262.00 | mm |
Height | 216.00 | mm |
Actual weight | 12.266 | kg |
Rated values | ||
Nominal frequency [Hz] | 50 |
Classification | ||
Certifications | CE |
Rated values 50 Hz | ||
Nominal power | 0,55 | kW |
Nominal voltage delta connection | 230 | V |
Nominal voltage star connection | 400 | V |
Current consumption delta connection | 2,77 | A |
Current consumption star connection | 1,6 | A |
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
