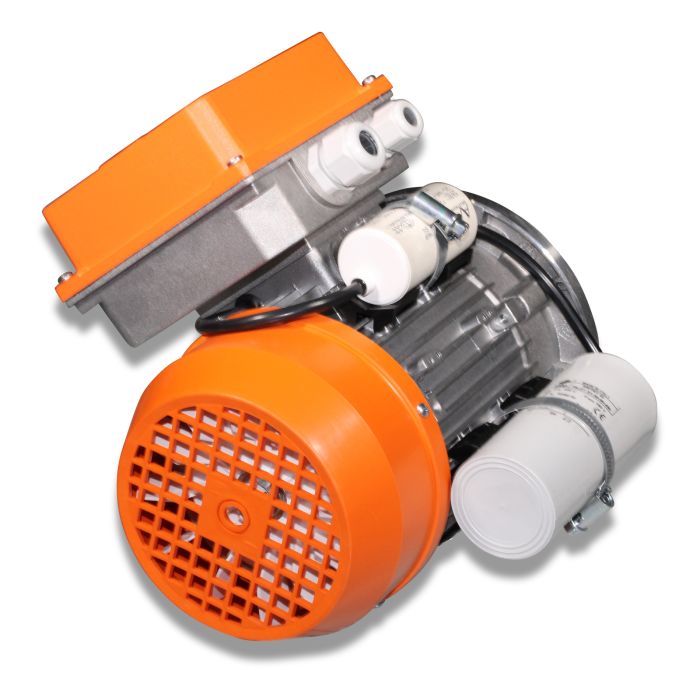

Motor 0.55kW 230V 1Ph 50Hz cpl B5 f/drive AM6

SKU

11-31-5048

Sales unit 1 pc

Dimensions
Length	268.00	mm
Width	252.00	mm
Height	238.00	mm
Actual weight	9.029	kg

Basic data
Running mode	S1	S1-S10
Design electric motor	B5

Rated values
Frequency	50	Hz
Pole pair	50

Classification
IP protection rating	IP55	IP
Insulation class	F

Rated values 50 Hz
Nominal power	0,55	kW
Nominal voltage single-phase	230	V
Current consumption delta connection	3,9	A
Motor speed	1400	r/min
Nominal torque motor	4	Nm

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
