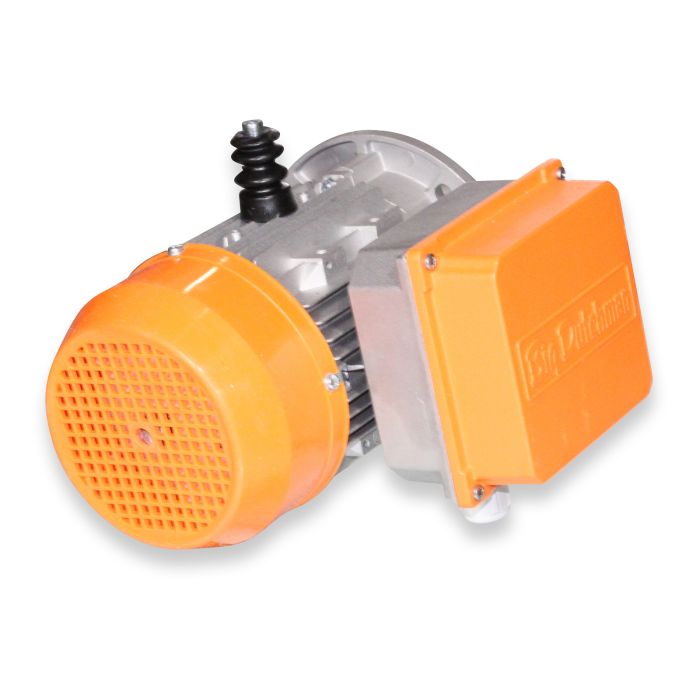

Motor 0.55kW 230/400V 50Hz 3Ph B5 cpl for drive AM6

SKU

11-31-5050

Sales unit 1 pc

Dimensions
Length	263.00	mm
Width	243.00	mm
Height	186.00	mm
Actual weight	7.727	kg

Basic data
Design electric motor	B5

Rated values
Frequency	50	Hz
Pole pair	50

Classification
IP protection rating	IP55	IP
Insulation class	F

Rated values 50 Hz
Nominal power	0,55	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption delta connection	2,77	A
Current consumption star connection	1,6	A
Motor speed	1380	r/min
Nominal torque motor	3,8	Nm

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
