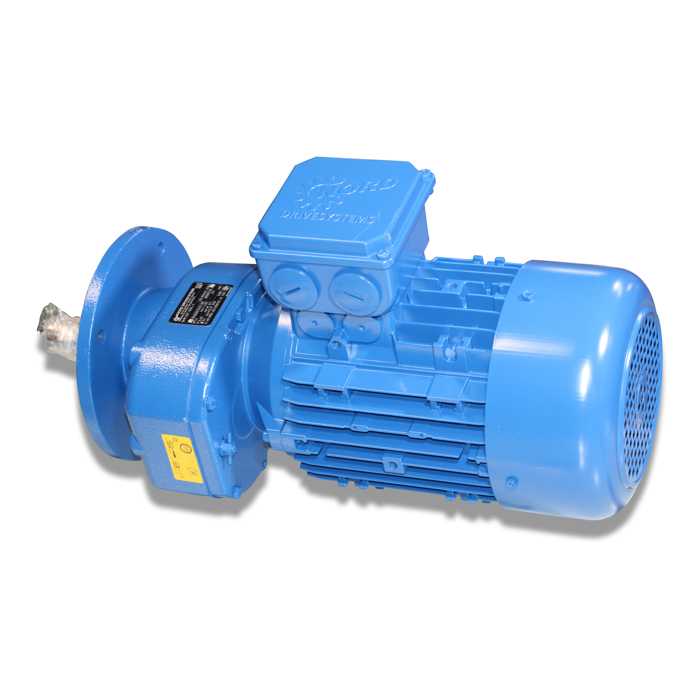

Mot-g 2,20 230/400 50 3PH 303r Typ SK 20F-100 L/4 (EE03012)

SKU

21-00-0884

Sales unit 1 pc

Dimensions
Length	516.00	mm
Width	229.00	mm
Height	271.00	mm
Actual weight	30.227	kg

Basic data
Running mode	S2 Minuten	S1-S10
Gear design	Flange version
Weight	33	kg

Rated values
Phases	3	Anzahl
Frequency	50	Hz

Classification
Insulation class	F

Dimensions
Output shaft length	80	Länge mm

Rated values 50 Hz
Nominal power	2,4	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Gear speed	311	r/min

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
