Mot-g 1.1kW 230/400V 3 50 50rpm f/dosing f/calcium source

SKU

25-16-3662

Sales unit 1 pc

Dimensions
Length	529.00	mm
Width	201.00	mm
Height	231.00	mm
Actual weight	30.250	kg

Basic data
Running mode	S1	S1-S10
Gear design	Flange version
Weight	34	kg

Rated values
Phases	3	Anzahl
Frequency	50	Hz
Controllable by	Frequenzumformer

Classification
Wirkungsgradklasse	IE3	IE1-IE5
IP protection rating	IP55	IP
Insulation class	F

Dimensions
Output shaft length	50	Länge mm

Rated values 50 Hz
Nominal power	1,1	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption delta connection	4,31	A
Current consumption star connection	2,49	A
Power factor	0.76
Efficiency	84.1
Gear speed	50	r/min

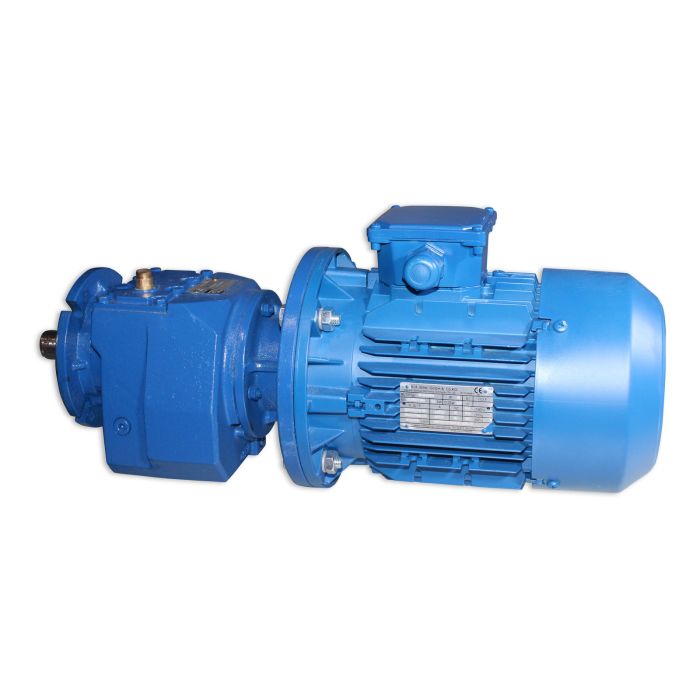

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
