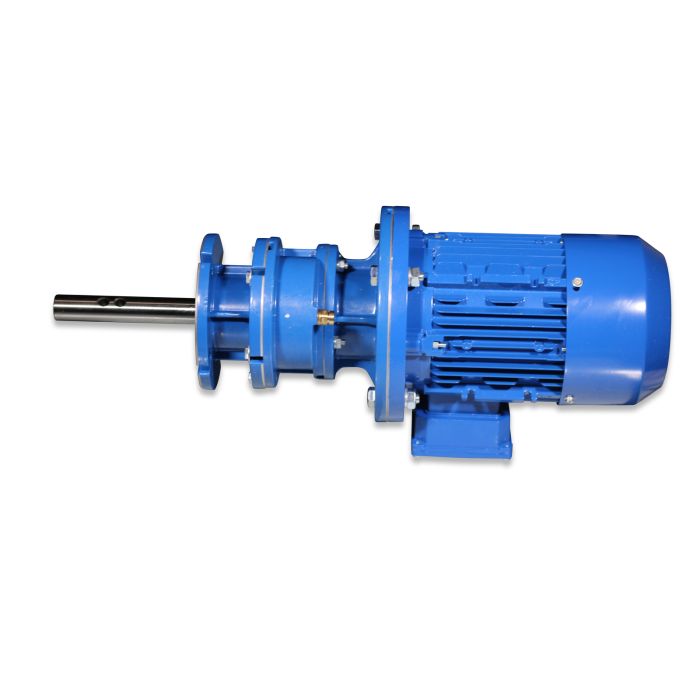

Mot-g 0.75kW 230/400V 50Hz 3Ph 370r FlexVey

SKU

25-60-3068

Sales unit 1 pc

Dimensions
Length	557.00	mm
Width	217.00	mm
Height	226.00	mm
Actual weight	14.749	kg

Basic data
Running mode	S1	S1-S10
Design electric motor	B5
Motor size	80
Gear type	Spur gear
Gear design	Flange version
Menge Getriebeöl	0.09	kg
Norm	IEC60034
Weight	13.6	kg

Rated values
Phases	3	Anzahl
Frequency	50	Hz
Pole pair	4
Type of connection	Star/Delta
Permiss. ambient temp. during operation	-10 - 40	°C
Kabel Motor	4 adrig

Classification
Wirkungsgradklasse	IE1	IE1-IE5
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE

Dimensions
Output shaft length	135	Länge mm

Rated values 50 Hz
Nominal power	0,75	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption delta connection	3,08	A
Current consumption star connection	1,78	A
Anlaufstrom Ia/In	8.9	Faktor
Power factor	0.76
Efficiency	79.6
Gear speed	370	r/min
Nennmoment Getriebe [Volllast]	19	Nm
Service factor	1	Fs

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
