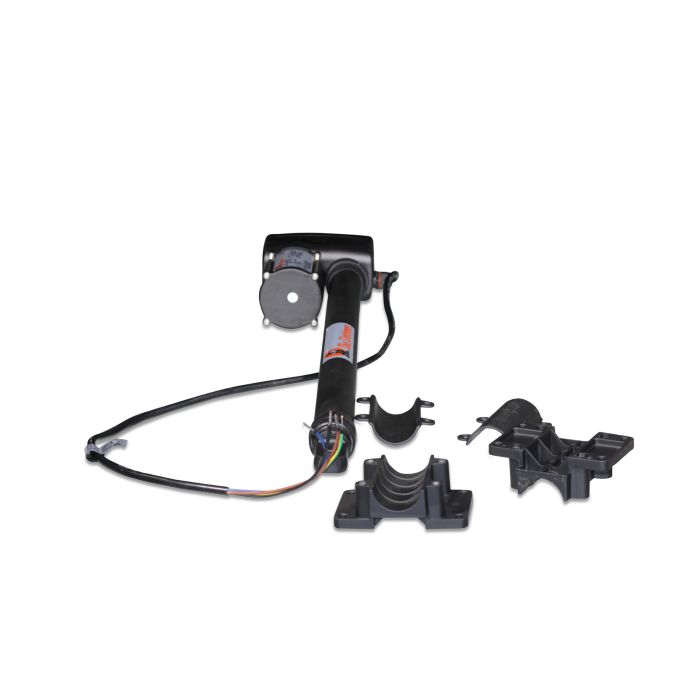

Servo-motor cpl 500mm 3.8mm/sec w/limit switch 230V 1Ph50/60
SKU
37-97-4833
Sales unit 1 pc
| Dimensions | ||
| Length | 865.00 | mm |
| Width | 471.00 | mm |
| Height | 101.00 | mm |
| Actual weight | 8.821 | kg |
| Rated values | ||
| Frequency | 50/60 | Hz |
| Pole pair | 50/60 | |
| Permiss. ambient temp. during operation | -25 - 60 | °C |
| Rated values 50 Hz | ||
| Nominal power | 0,08 | kW |
| Nominal voltage single-phase | 230 | V |
| Current consumption star connection | 0,8 | A |
| Efficiency | 0,8 | |
| Motor speed | 1450 | r/min |
| Nominal torque motor | 0,6 | Nm |
| Gear speed | 66 | r/min |
| Rated values 60 Hz | ||
| Nominal power | 0,08 | kW |
| Current consumption star connection | 0,8 | A |
| Efficiency | 0,8 | |
| Motor speed | 1700 | r/min |
| Nominal torque motor | 0,6 | Nm |
| Gear speed | 77 | r/min |
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
