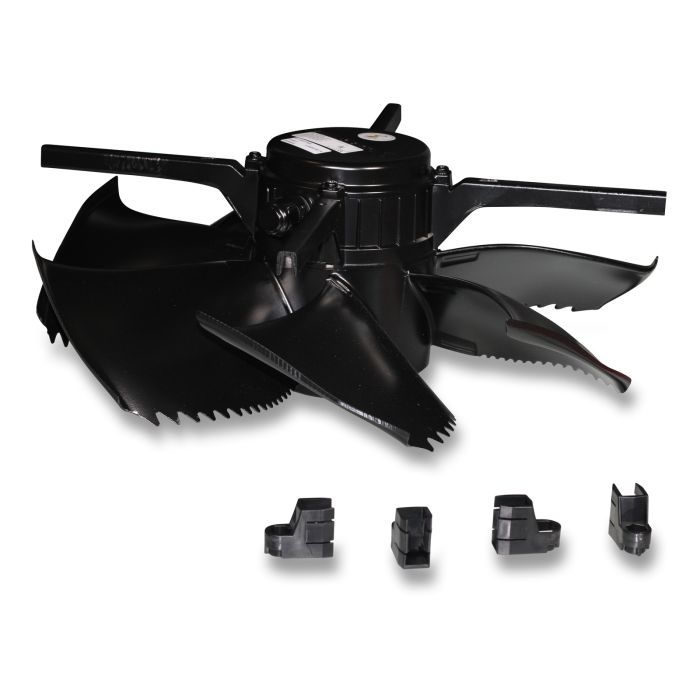

Fan FN050-6DT (70°C) 6200m³ 400V 290W 0.74A

SKU

40-10-3919

Sales unit 1 pc

Dimensions
Length	495.00	mm
Width	495.00	mm
Height	196.00	mm
Actual weight	11.145	kg

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation in pipe

Rated values
Phases	3	Ph
Nominal frequency [Hz]	50/60	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Rated values 50 Hz
Elektrische Nennleistung	0.29	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Nominal current delta connection	1,3	A
Nominal current star connection	0,74	A
Speed	870	U/min
Power factor	0.57
Ambient temperature	-40 - 70	°C
Sound power level Lw	64	dB
Sound pressure level Lp	39	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	6187	m³/h
Characteristic curve – 10 Pa	5909	m³/h
Characteristic curve – 20 Pa	5614	m³/h
Characteristic curve – 30 Pa	5299	m³/h
Characteristic curve – 40 Pa	4982	m³/h
Characteristic curve – 50 Pa	4612	m³/h
Characteristic curve – 60 Pa	4182	m³/h
Characteristic curve – 70 Pa	3546	m³/h

Rated values 60 Hz
Elektrische Nennleistung	0.38	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Nominal current delta connection	1,5	A
Nominal current star connection	0,88	A
Speed	860	U/min
Power factor	0.62
Ambient temperature	-40 - 65	°C

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
