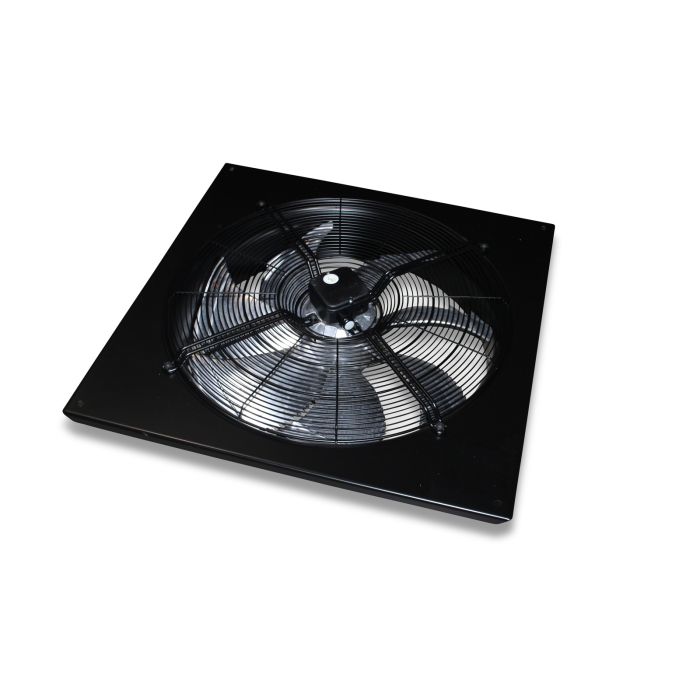

Fan FN063 400V 50Hz 1.25A/0.78A f/HeatMaster 50R/60R

SKU

40-10-3924

Sales unit 1 pc

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation in pipe

Rated values
Phases	3	Ph
Nominal frequency [Hz]	50/60	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Certifications	CE, UL
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Rated values 50 Hz
Elektrische Nennleistung	0.62	kW
Nominal voltage delta connection	400	V
Nominal voltage star connection	230	V
Nominal current delta connection	1,25	A
Nominal current star connection	0,72	A
Speed	900/720	U/min
Power factor	0.72
Ambient temperature	-40 - 70	°C
Sound power level Lw	70	dB
Sound pressure level Lp	45	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	10982	m³/h
Characteristic curve – 10 Pa	10758	m³/h
Characteristic curve – 20 Pa	10486	m³/h
Characteristic curve – 30 Pa	10162	m³/h
Characteristic curve – 40 Pa	9806	m³/h
Characteristic curve – 50 Pa	9395	m³/h
Characteristic curve – 60 Pa	8975	m³/h
Characteristic curve – 70 Pa	8548	m³/h
Characteristic curve – 80 Pa	8105	m³/h
Characteristic curve – 90 Pa	7621	m³/h
Characteristic curve – 100 Pa	7099	m³/h
Characteristic curve – 110 Pa	6495	m³/h
Characteristic curve – 120 Pa	5198	m³/h

Rated values 60 Hz
Elektrische Nennleistung	0.94	kW
Nominal voltage delta connection	400	V
Nominal voltage star connection	230	V
Nominal current delta connection	1,6	A
Nominal current star connection	0,88	A
Speed	980/640	U/min
Power factor	0.85
Ambient temperature	-40 - 50	°C

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
