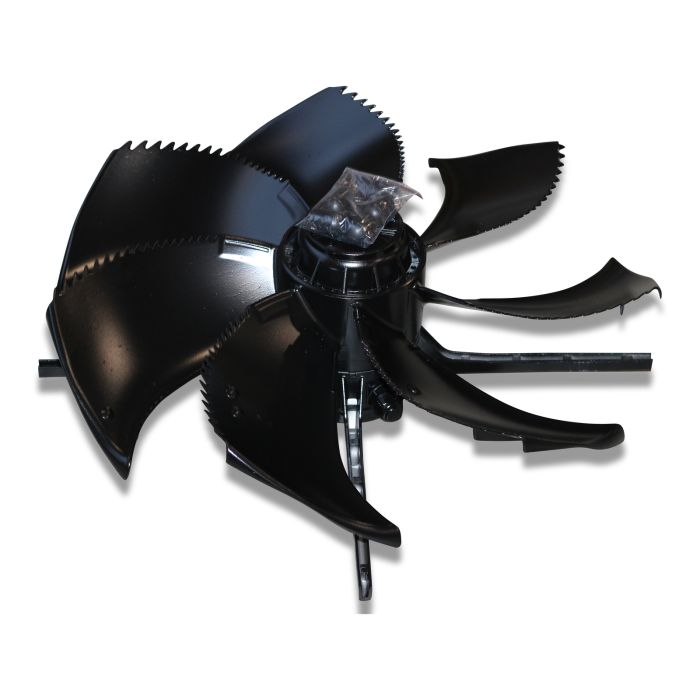

Fan FN063-6DT (70°C) 3PH 230/400V 630W 1.25A

SKU

40-10-3925

Sales unit 1 pc

Dimensions
Length	628.00	mm
Width	623.00	mm
Height	233.00	mm
Actual weight	13.160	kg

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation in pipe

Rated values
Phases	3	Ph
Nominal frequency [Hz]	50/60	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Rated values 50 Hz
Elektrische Nennleistung	0.63	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Nominal current delta connection	2,2	A
Nominal current star connection	1,25	A
Speed	900	U/min
Power factor	0.72
Ambient temperature	-40 - 70	°C
Sound power level Lw	70	dB
Sound pressure level Lp	45	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	11215	m³/h
Characteristic curve – 10 Pa	10930	m³/h
Characteristic curve – 20 Pa	10645	m³/h
Characteristic curve – 30 Pa	10307	m³/h
Characteristic curve – 40 Pa	9948	m³/h
Characteristic curve – 50 Pa	9521	m³/h
Characteristic curve – 60 Pa	9124	m³/h
Characteristic curve – 70 Pa	8734	m³/h
Characteristic curve – 80 Pa	8220	m³/h
Characteristic curve – 90 Pa	7697	m³/h
Characteristic curve – 100 Pa	7166	m³/h
Characteristic curve – 110 Pa	6559	m³/h
Characteristic curve – 120 Pa	5624	m³/h

Rated values 60 Hz
Elektrische Nennleistung	0.94	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Nominal current delta connection	2,8	A
Nominal current star connection	1,6	A
Speed	980	U/min
Power factor	0.85
Ambient temperature	-40 - 50	°C

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
