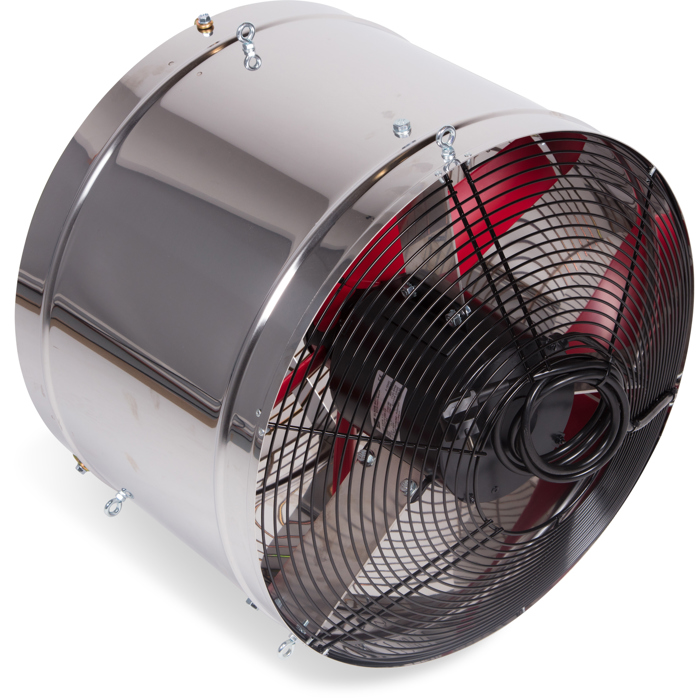

Fan f/recirculating air R20-9 1Ph 50/60Hz 230 0.76A 5800m³/h

SKU

40-20-1090

Sales unit 1 pc

Basic data
Montiert	Mounted
Type	Recirculating air

Rated values
Phases	1	Ph
Nominal frequency [Hz]	50/60	Hz
Control	Not controllable

Classification
IP protection rating	IP54
Certifications	CE

Dimensions
Width	517	mm
Height	517	mm
Total depth	445	mm
Diameter	506	mm

Rated values 50 Hz
Elektrische Nennleistung	0.16	kW
Nominal voltage single-phase	230	V
Nominal current single-phase	0,76	A
Speed	965	U/min
Ambient temperature	0 - 60	°C
Sound power level Lw	79	dB
Sound pressure level Lp	54	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	5800	m³/h

Rated values 60 Hz
Elektrische Nennleistung	0.155	kW
Nominal voltage single-phase	230	V
Nominal current single-phase	0,76	A

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
