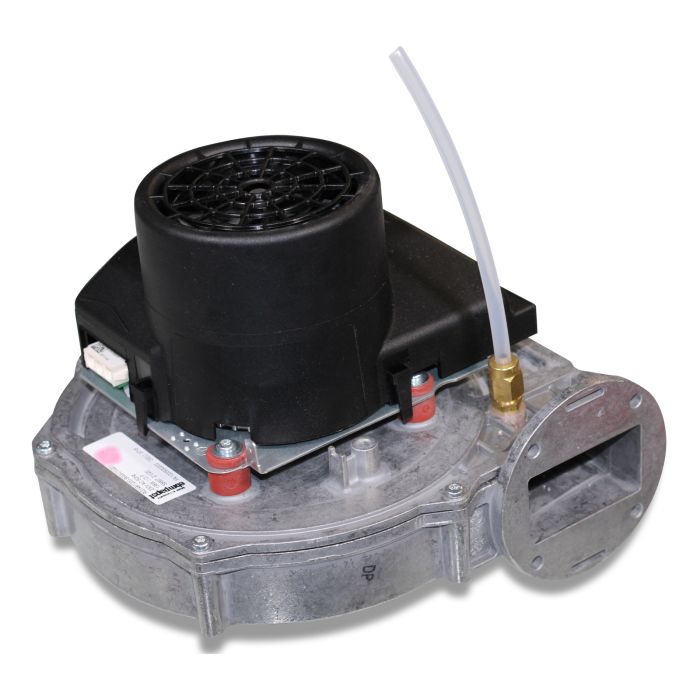

Fan MVL RG148 V14 for burner for RGA 100

SKU

40-20-3946

Sales unit 1 pc

Dimensions
Length	203.00	mm
Width	187.00	mm
Height	201.00	mm
Actual weight	2.113	kg

Basic data
Montiert	Mounted

Rated values
Phases	1	Ph
Nominal frequency [Hz]	50	Hz
Control	Not controllable

Classification
IP protection rating	IP00
Certifications	CE
Insulation class (DIN EN 60085)	H
Efficiency rating (ErP)	E15

Rated values 50 Hz
Elektrische Nennleistung	0.2	kW
Nominal voltage single-phase	230	V
Nominal current single-phase	0,9	A
Speed	8000	U/min
Ambient temperature	0 - 60	°C

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	220	m³/h

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
