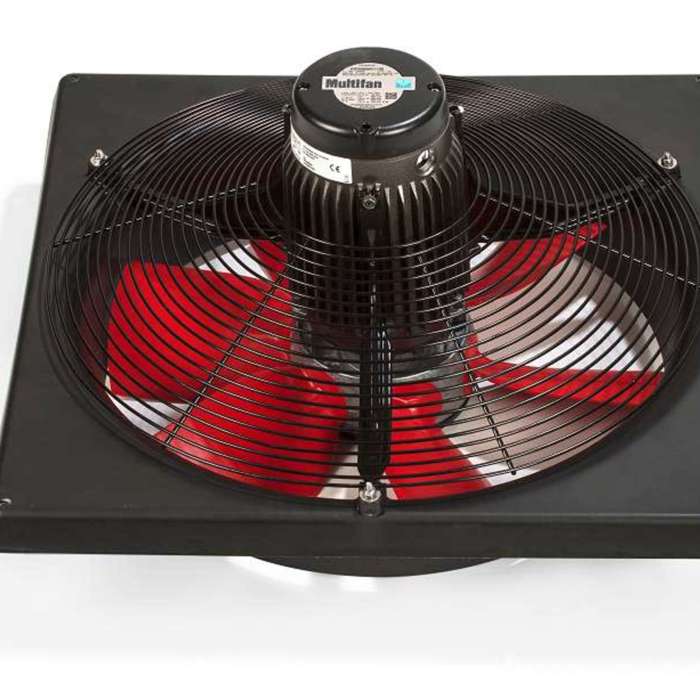

Fan PRG43Q cpl 1000W 2.3A 8000m³/h f/Thermorizer TR 75

SKU

41-20-2080

Sales unit 1 pc

Basic data
Montiert	Mounted

Rated values
Phases	3	Ph
Nominal frequency [Hz]	50	Hz
Control	Not controllable

Classification
IP protection rating	IP55
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Rated values 50 Hz
Elektrische Nennleistung	0.95	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Nominal current delta connection	3,4	A
Nominal current star connection	2	A
Speed	1450	U/min
Ambient temperature	-25 - 40	°C

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	10800	m³/h
Characteristic curve – 10 Pa	10630	m³/h
Characteristic curve – 20 Pa	10460	m³/h
Characteristic curve – 30 Pa	10290	m³/h
Characteristic curve – 40 Pa	10120	m³/h
Characteristic curve – 50 Pa	9950	m³/h
Characteristic curve – 60 Pa	9780	m³/h
Characteristic curve – 70 Pa	9610	m³/h
Characteristic curve – 80 Pa	9440	m³/h
Characteristic curve – 90 Pa	9270	m³/h
Characteristic curve – 100 Pa	9100	m³/h

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
