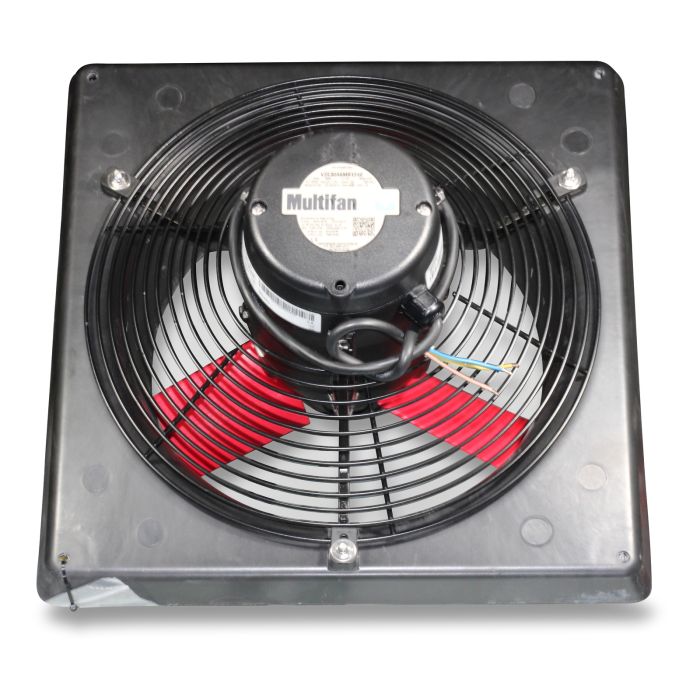

Fan cpl 2E30 JetMaster GP70 BCU until 07/23

SKU

41-20-3874

Sales unit 1 pc

Basic data
Montiert	Mounted
Thermal protection contact	Yes

Rated values
Phases	1	Ph
Nominal frequency [Hz]	50	Hz
Control	Not controllable

Classification
IP protection rating	IP55
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Rated values 50 Hz
Elektrische Nennleistung	0.4	kW
Nominal voltage single-phase	230	V
Nominal current single-phase	1,7	A
Speed	2725	U/min
Ambient temperature	-25 - 40	°C

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	4100	m³/h
Characteristic curve – 10 Pa	3920	m³/h
Characteristic curve – 20 Pa	3740	m³/h
Characteristic curve – 30 Pa	3560	m³/h
Characteristic curve – 40 Pa	3380	m³/h
Characteristic curve – 50 Pa	3200	m³/h

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
