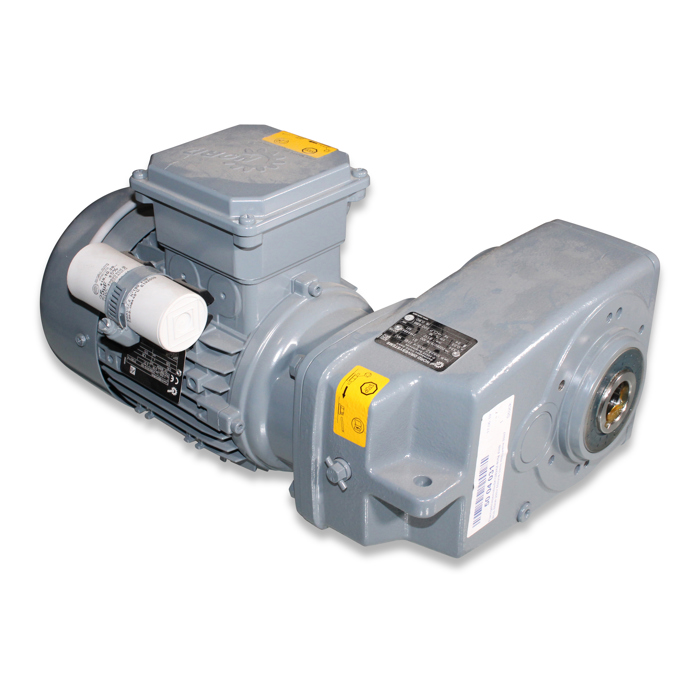

Mot-g 0.55kW 230V 50Hz 1Ph 17r SK 12 82 AZ-80 S/4

SKU

57-05-3504

Sales unit 1 pc

Dimensions
Length	415.00	mm
Width	270.00	mm
Height	226.00	mm
Actual weight	22.235	kg

Basic data
Running mode	S1	S1-S10
Motor size	80
Gear type	Flat gear
Gear design	Flange version
Menge Getriebeöl	0.95	kg
Norm	IEC60034
Weight	23	kg

Rated values
Phases	1	Anzahl
Frequency	50	Hz
Pole pair	4
Type of connection	Single Phase
Permiss. ambient temp. during operation	-20 - 40	°C
Kabel Motor	4 adrig

Classification
Wirkungsgradklasse	IE1	IE1-IE5
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE

Rated values 50 Hz
Nominal power	0,55	kW
Nominal voltage single-phase	230	V
Current consumption single-phase	4,38	A
Anlaufstrom Ia/In	3.7	Faktor
Power factor	0.98
Motor speed	1275	r/min
Nominal torque motor	4,12	Nm
Gear speed	16	r/min
Nennmoment Getriebe [Volllast]	334	Nm
Service factor	0.9	Fs

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
