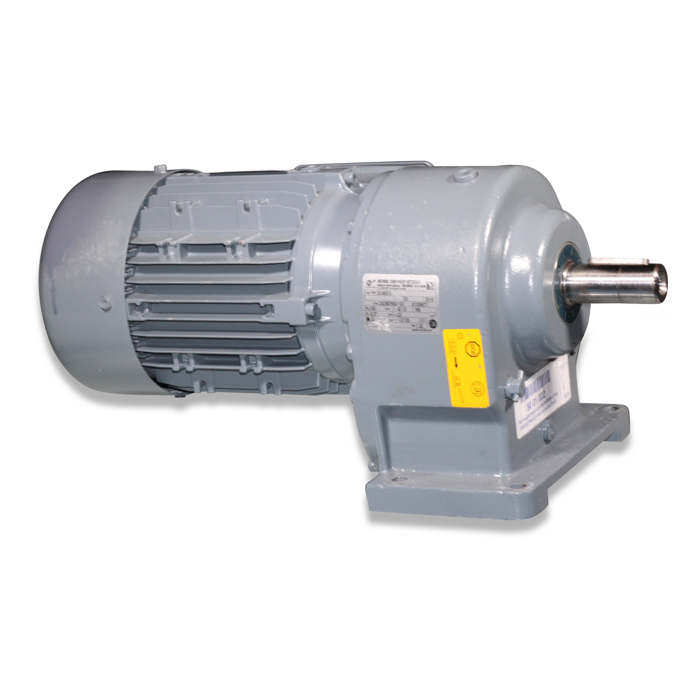

Mot-g 0.37 230/400 50/60 21.6r SK 20-80 S/6 VW25/50 01 032

SKU

57-05-3512

Sales unit 1 pc

Dimensions
Length	428.00	mm
Width	233.00	mm
Height	211.00	mm
Actual weight	20.910	kg

Basic data
Running mode	S1	S1-S10
Design electric motor	B6
Motor size	80S
Gear type	Spur gear

Rated values
Frequency	50/60	Hz
Pole pair	50/60
Type of connection	Star/Delta
Permiss. ambient temp. during operation	-20 - 40	°C

Classification
IP protection rating	IP55	IP
Insulation class	F

Rated values 50 Hz
Nominal power	0,37	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption delta connection	1,22	A
Current consumption star connection	2,11	A
Power factor	2,11
Efficiency	2,11
Motor speed	930	r/min
Nominal torque motor	3,8	Nm
Gear speed	21,6	r/min
Service factor	21,6	Fs

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
