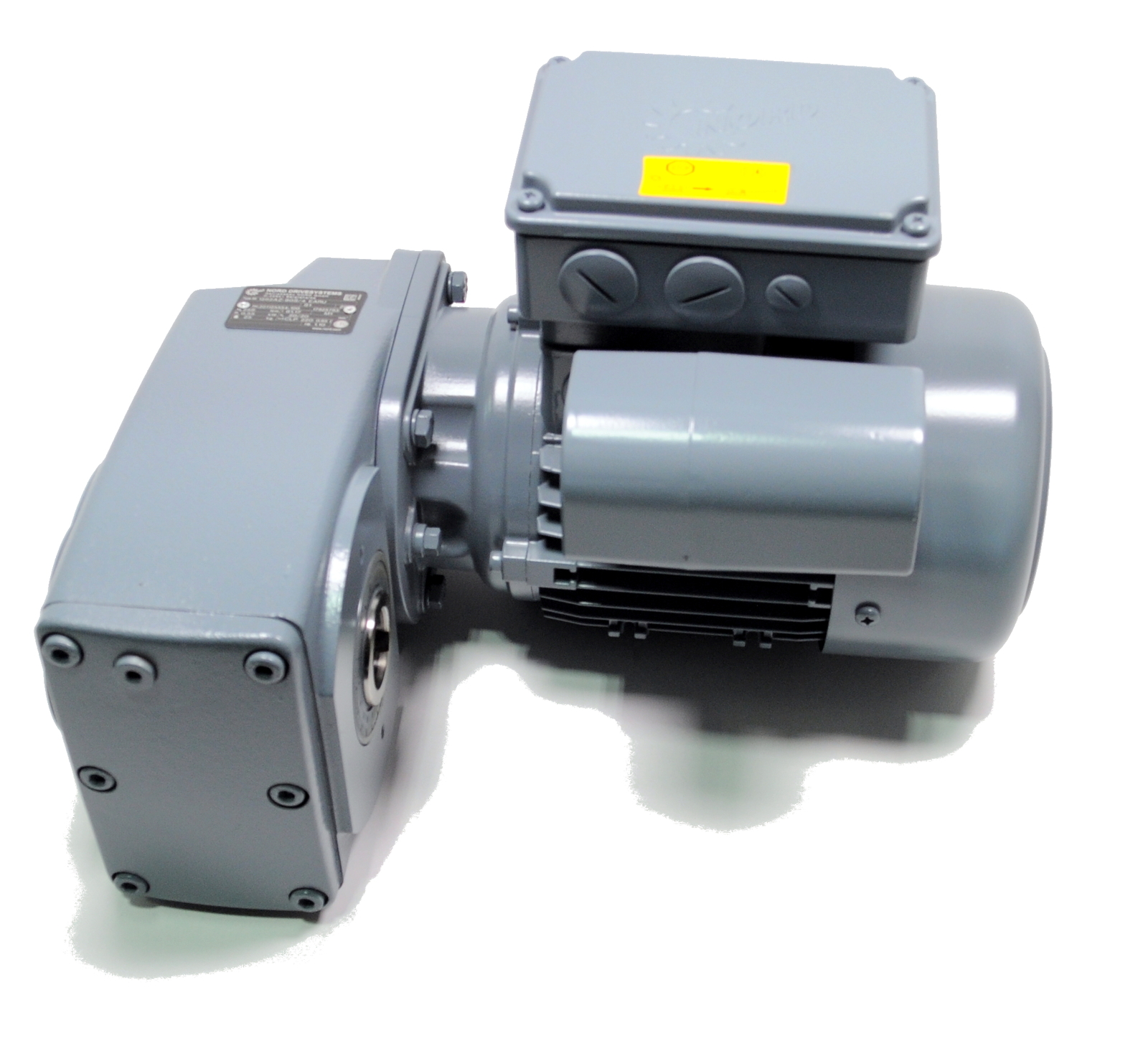

Mot-g 0.55kW 230V 60Hz 1Ph 20r hollow shaft CSA
SKU
57-05-3574
Sales unit 1 pc
| Basic data | ||
| Running mode | S1 | S1-S10 |
| Motor size | 80 | |
| Gear type | Flat gear | |
| Gear design | Flange version | |
| Menge Getriebeöl | 0.95 | kg |
| Norm | IEC60034 | |
| Weight | 23 | kg |
| Rated values | ||
| Phases | 1 | Anzahl |
| Frequency | 60 | Hz |
| Pole pair | 4 | |
| Type of connection | Single Phase | |
| Permiss. ambient temp. during operation | -20 - 40 | °C |
| Kabel Motor | 3 adrig |
| Classification | ||
| Wirkungsgradklasse | IE1 | IE1-IE5 |
| IP protection rating | IP55 | IP |
| Insulation class | F | |
| Certifications | CSA, CE |
| Rated values 60 Hz | ||
| Nominal power | 0,55 | kW |
| Nominal voltage single-phase | 230 | V |
| Current consumption single-phase | 4,32 | A |
| Power factor | 0.86 | |
| Motor speed | 1635 | r/min |
| Nominal torque motor | 3,21 | Nm |
| Gear speed | 20 | r/min |
| Nennmoment Getriebe [Volllast] | 258 | Nm |
| Service factor | 1.1 | Fs |
