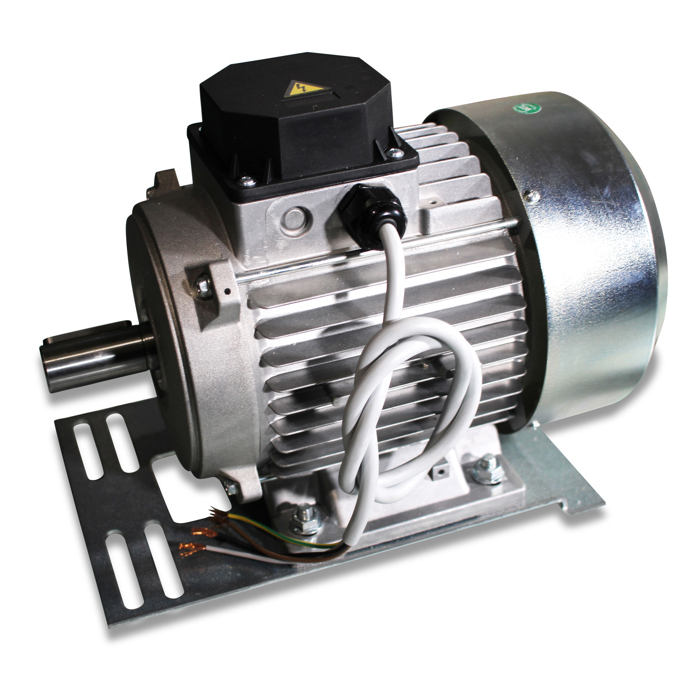

Electric motor 1.50HP 230/400 50Hz 3Ph Multispeed

SKU

60-20-3071

Sales unit 1 pc

Dimensions
Length	308.00	mm
Width	207.00	mm
Height	221.00	mm
Actual weight	14.196	kg

Basic data
Running mode	S1	S1-S10
Design electric motor	B3
Weight	12.2	kg

Rated values
Phases	3	Anzahl
Frequency	50/60	Hz
Pole pair	2
Type of connection	Star/Delta

Classification
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE

Dimensions
Output shaft length	50	Länge mm

Rated values 50 Hz
Nominal power	1,1	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption star connection	2,9	A
Power factor	0.71
Efficiency	79.7
Motor speed	1370	r/min
Nominal torque motor	7,52	Nm

Rated values 60 Hz
Nominal power	1,1	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption star connection	2,6	A
Power factor	0.78
Efficiency	79.7
Motor speed	1640	r/min
Nennmoment Getriebe [Volllast]	7.52	Nm

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
