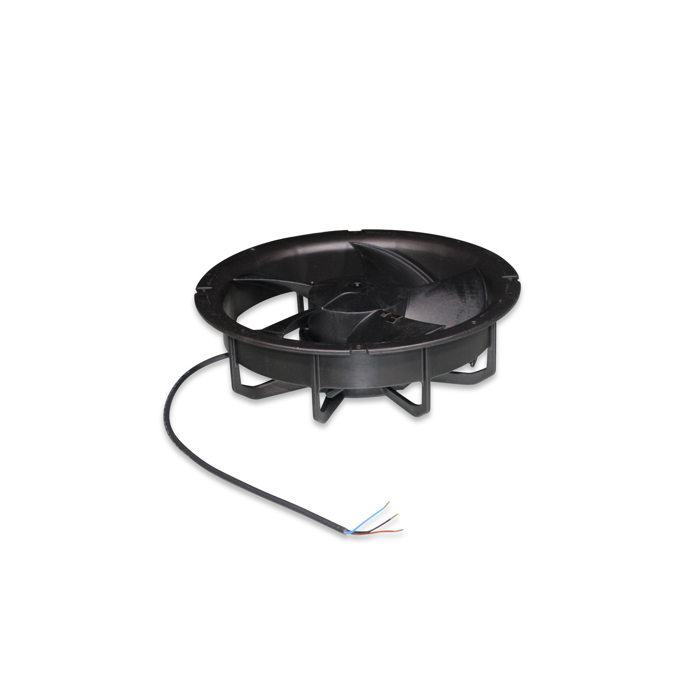

Fan W1G200 230V 0.24A 50/60Hz 2100/1500 rpm

SKU

60-25-0301

Sales unit 1 pc

Dimensions
Length	249.00	mm
Width	245.00	mm
Height	103.00	mm
Actual weight	0.901	kg

Basic data
Montiert	Mounted
Thermal protection contact	Yes

Rated values
Phases	1	Ph
Nominal frequency [Hz]	50/60	Hz

Classification
IP protection rating	IP54
Certifications	UL, CSA
Insulation class (DIN EN 60085)	B

Rated values 50 Hz
Elektrische Nennleistung	0.031	kW
Nominal voltage single-phase	230	V
Nominal current single-phase	0,24	A
Speed	1500/2100	U/min
Ambient temperature	-30 - 50	°C
Sound power level Lw	66	dB
Sound pressure level Lp	38	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	750	m³/h
Characteristic curve – 10 Pa	710	m³/h
Characteristic curve – 20 Pa	670	m³/h
Characteristic curve – 30 Pa	633	m³/h
Characteristic curve – 40 Pa	595	m³/h

Rated values 60 Hz
Elektrische Nennleistung	0.031	kW
Nominal voltage single-phase	230	V
Nominal current single-phase	0,24	A
Speed	1500/2100	U/min

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
