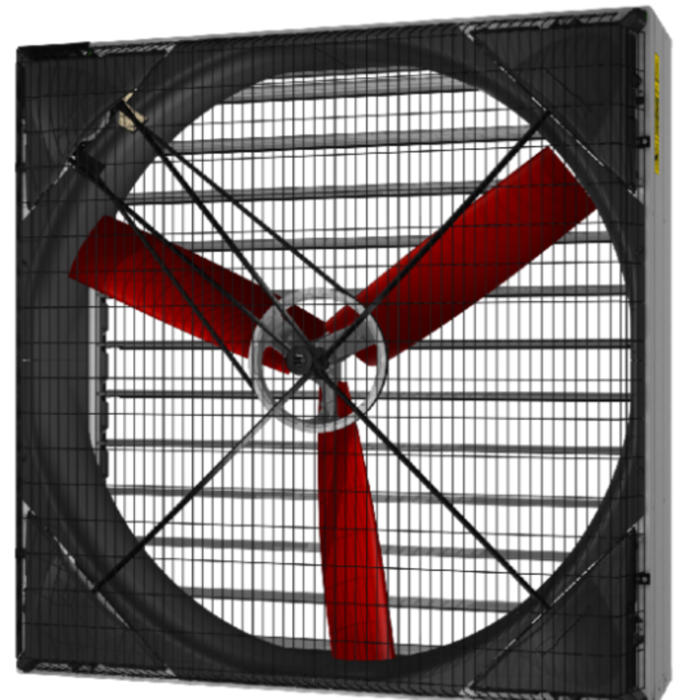

Fan BD-V130-3-1.50HP EVO 44700m³ 400-3-50 unass. w/fc

SKU

60-25-4025

Sales unit 1 pc

Basic data
Montiert	Unmounted
Thermal protection contact	No
Type	Installation at a wall
Weight	80.1	kg

Rated values
Phases	3	Ph
Nominal frequency [Hz]	50	Hz
Control	Frequency converter

Classification
IP protection rating	IP55
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E20

Dimensions
Width	1382	mm
Height	1382	mm
Total depth	523	mm
Diameter	1284	mm

Rated values 50 Hz
Elektrische Nennleistung	1.55	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Nominal current star connection	2,5	A
Speed	590	U/min
Power factor	0.9
Ambient temperature	-25 - 40	°C

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	44765	m³/h
Characteristic curve – 10 Pa	42961	m³/h
Characteristic curve – 20 Pa	41090	m³/h
Characteristic curve – 30 Pa	39093	m³/h
Characteristic curve – 40 Pa	36595	m³/h
Characteristic curve – 50 Pa	33770	m³/h
Characteristic curve – 60 Pa	30497	m³/h
Characteristic curve – 70 Pa	27114	m³/h

Spec. power 50 Hz
Characteristic curve – 0 Pa	34.6	W/(1000m³/h)
Characteristic curve – 10 Pa	37	W/(1000m³/h)
Characteristic curve – 20 Pa	39.5	W/(1000m³/h)
Characteristic curve – 30 Pa	42.2	W/(1000m³/h)
Characteristic curve – 40 Pa	45.6	W/(1000m³/h)
Characteristic curve – 50 Pa	49.7	W/(1000m³/h)
Characteristic curve – 60 Pa	54.9	W/(1000m³/h)
Characteristic curve – 70 Pa	61.5	W/(1000m³/h)

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
