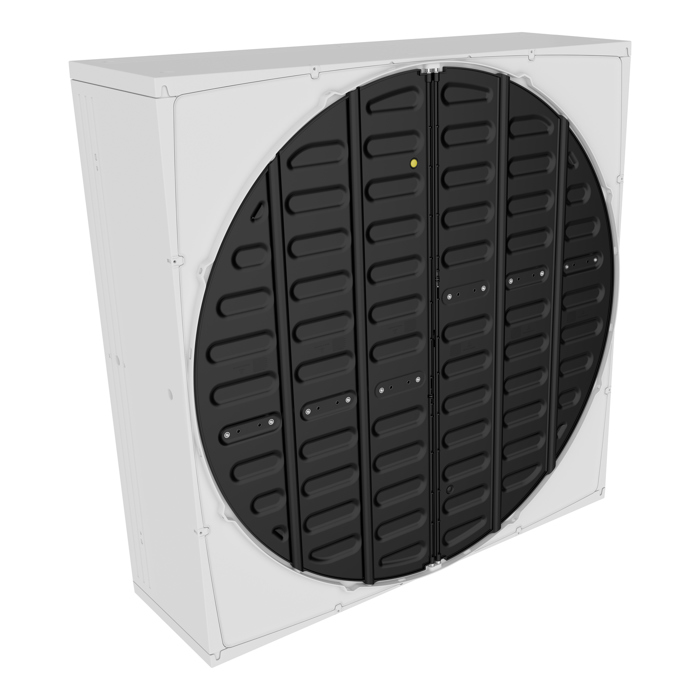

Fan BD-Blue 130 ON/OFF mot 230-1-60 7.1A 40400m³/h

SKU

60-25-4578

Sales unit 1 pc

Basic data
Montiert	Mounted
Thermal protection contact	No
Type	Installation at a wall
Weight	75	kg

Rated values
Phases	1	Ph
Nominal frequency [Hz]	60	Hz
Control	Not controllable

Classification
IP protection rating	IP65
Certifications	CE, UL
Efficiency rating (ErP)	E15

Dimensions
Width	1380	mm
Height	1380	mm
Total depth	450	mm
Diameter	1270	mm

Rated values 60 Hz
Elektrische Nennleistung	1.452	kW
Nominal voltage single-phase	230	V
Voltage tolerance	-10 - 10	%
Nominal current single-phase	7,1	A
Speed	840	U/min
Power factor	0.99
Ambient temperature	-40 - 40	°C
Sound power level Lw	90	dB
Sound pressure level Lp	66	dB

Volumetric flow rate 60 Hz
Characteristic curve – 0 Pa	40400	m³/h
Characteristic curve – 10 Pa	38700	m³/h
Characteristic curve – 20 Pa	36900	m³/h
Characteristic curve – 30 Pa	35000	m³/h
Characteristic curve – 40 Pa	33100	m³/h
Characteristic curve – 50 Pa	31200	m³/h
Characteristic curve – 60 Pa	29200	m³/h
Characteristic curve – 70 Pa	27100	m³/h
Characteristic curve – 80 Pa	25000	m³/h
Characteristic curve – 90 Pa	22800	m³/h
Characteristic curve – 100 Pa	20500	m³/h

Spec. power 60 Hz
Characteristic curve – 0 Pa	35	W/(1000m³/h)
Characteristic curve – 10 Pa	37	W/(1000m³/h)
Characteristic curve – 20 Pa	40	W/(1000m³/h)
Characteristic curve – 30 Pa	42	W/(1000m³/h)
Characteristic curve – 40 Pa	45	W/(1000m³/h)
Characteristic curve – 50 Pa	48	W/(1000m³/h)
Characteristic curve – 60 Pa	51	W/(1000m³/h)
Characteristic curve – 70 Pa	55	W/(1000m³/h)
Characteristic curve – 80 Pa	64	W/(1000m³/h)
Characteristic curve – 90 Pa	69	W/(1000m³/h)
Characteristic curve – 100 Pa	70	W/(1000m³/h)

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
