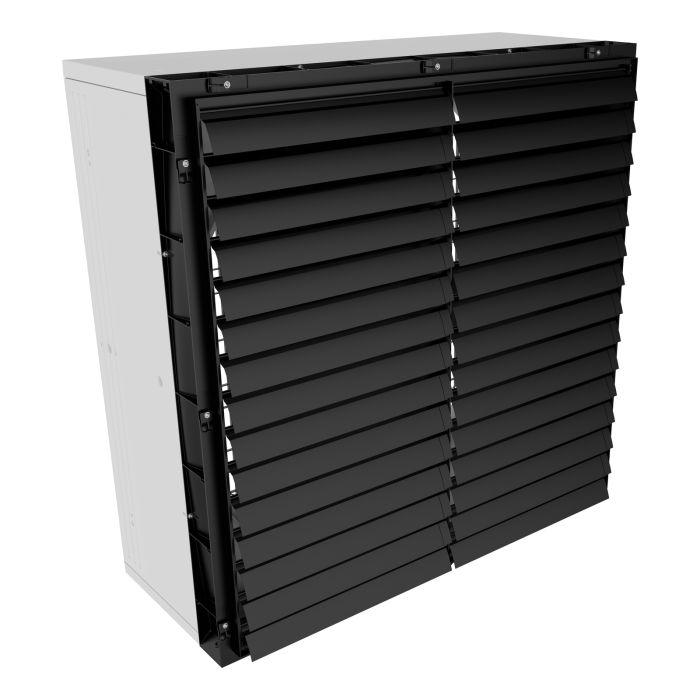

Fan BD-Blue 130 ON/OFF 230-1-50 7.5A 42300m³/h

SKU

60-25-4583

Sales unit 1 pc

Basic data
Montiert	Mounted
Thermal protection contact	No
Type	Installation at a wall
Weight	88.4	kg

Rated values
Phases	1	Ph
Nominal frequency [Hz]	50	Hz
Control	Not controllable

Classification
IP protection rating	IP65
Certifications	CE
Efficiency rating (ErP)	E15

Dimensions
Width	1380	mm
Height	1380	mm
Total depth	652	mm
Diameter	1270	mm

Rated values 50 Hz
Elektrische Nennleistung	1.41	kW
Nominal voltage single-phase	230	V
Voltage tolerance	-10 - 10	%
Nominal current single-phase	7,5	A
Speed	700	U/min
Power factor	0.94
Ambient temperature	-40 - 40	°C
Sound power level Lw	88	dB
Sound pressure level Lp	64	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	42300	m³/h
Characteristic curve – 10 Pa	40100	m³/h
Characteristic curve – 20 Pa	38200	m³/h
Characteristic curve – 30 Pa	36300	m³/h
Characteristic curve – 40 Pa	34300	m³/h
Characteristic curve – 50 Pa	31900	m³/h
Characteristic curve – 60 Pa	29200	m³/h
Characteristic curve – 70 Pa	25800	m³/h
Characteristic curve – 80 Pa	21600	m³/h

Spec. power 50 Hz
Characteristic curve – 0 Pa	35	W/(1000m³/h)
Characteristic curve – 10 Pa	38	W/(1000m³/h)
Characteristic curve – 20 Pa	40	W/(1000m³/h)
Characteristic curve – 30 Pa	43	W/(1000m³/h)
Characteristic curve – 40 Pa	46	W/(1000m³/h)
Characteristic curve – 50 Pa	49	W/(1000m³/h)
Characteristic curve – 60 Pa	53	W/(1000m³/h)
Characteristic curve – 70 Pa	59	W/(1000m³/h)
Characteristic curve – 80 Pa	68	W/(1000m³/h)

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
