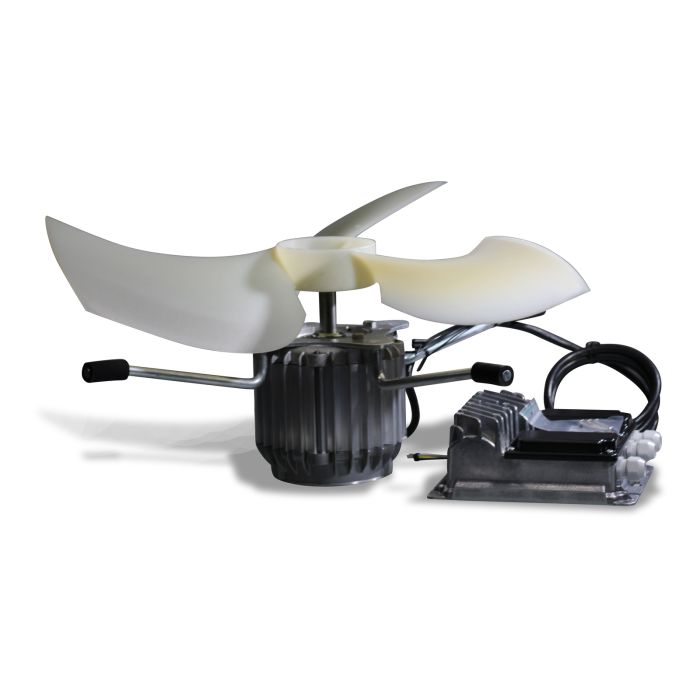

Fan LPC-11 1Ph 50/60Hz 230V 13900m³ f/CL-600 Dimensions Length 734.00 mm Width 599.00 mm Height 306.00 mm Actual weight 16.589 kg
Basic data Montiert Mounted Thermal protection contact No Chimney 600 - CL 600
Rated values Phases 1 Ph Nominal frequency [Hz] 50/60 Hz Control 0-10 V
Classification IP protection rating IP55 Certifications CE Efficiency rating (ErP) E15
Rated values 50 Hz Elektrische Nennleistung 0.8 kW Nominal voltage single-phase 230 V Voltage tolerance -10 - 10 % Nominal current single-phase 4,2 A Speed 1100 U/min Power factor 0.99 Ambient temperature -40 - 40 °C Sound power level Lw 85 dB Sound pressure level Lp 57 dB
Volumetric flow rate 50 Hz Characteristic curve – 10 Pa 13400 m³/h Characteristic curve – 20 Pa 13100 m³/h Characteristic curve – 30 Pa 12900 m³/h Characteristic curve – 40 Pa 12500 m³/h Characteristic curve – 50 Pa 12000 m³/h Characteristic curve – 60 Pa 11600 m³/h
Rated values 60 Hz Elektrische Nennleistung 0.8 kW Nominal voltage single-phase 230 V Voltage tolerance -10 - 10 % Nominal current single-phase 4,2 A Speed 1100 U/min Power factor 0.99 Ambient temperature -40 - 40 °C Sound power level Lw 85 dB Sound pressure level Lp 57 dB
Illustrations may show accessories that are not included in the scope of delivery.
