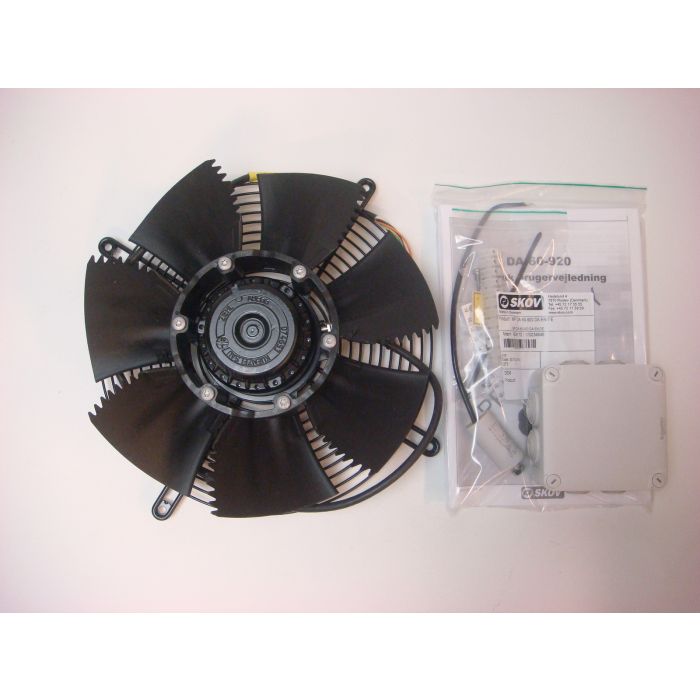

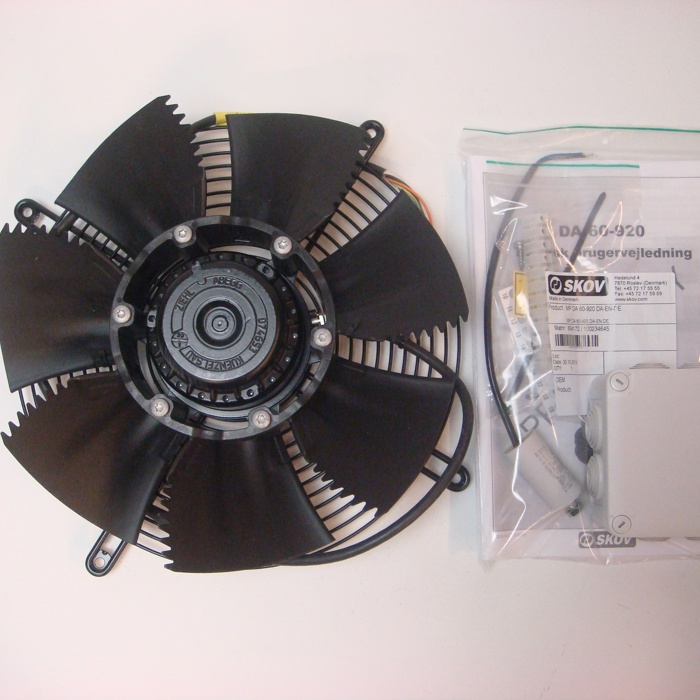

Fan f/circulation air unit CL-60-920

SKU

60-43-4051

Sales unit 1 pc

Basic data
Montiert	Mounted
Thermal protection contact	Yes

Rated values
Phases	1	Ph
Nominal frequency [Hz]	50/60	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Rated values 50 Hz
Elektrische Nennleistung	0.12	kW
Nominal voltage single-phase	230	V
Nominal current single-phase	0,62	A
Speed	1440	U/min
Ambient temperature	-25 - 70	°C
Sound power level Lw	69	dB
Sound pressure level Lp	44	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	2204	m³/h
Characteristic curve – 10 Pa	2124	m³/h
Characteristic curve – 20 Pa	2037	m³/h
Characteristic curve – 30 Pa	1924	m³/h
Characteristic curve – 40 Pa	1809	m³/h
Characteristic curve – 50 Pa	1685	m³/h
Characteristic curve – 60 Pa	1537	m³/h
Characteristic curve – 70 Pa	1372	m³/h
Characteristic curve – 80 Pa	1180	m³/h

Rated values 60 Hz
Elektrische Nennleistung	0.17	kW
Nominal voltage single-phase	230	V
Nominal current single-phase	0,76	A
Speed	1690	U/min
Ambient temperature	-25 - 70	°C

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
