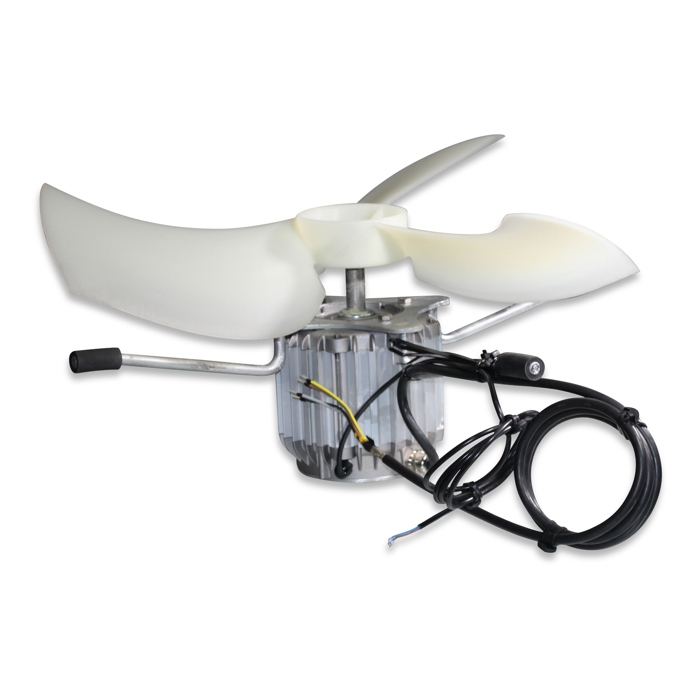

Fan LPC-11 1Ph 50/60Hz 230V 13900m³ f/CL-600 T Dimensions Width 574.00 mm Actual weight 14.977 kg
Basic data Montiert Mounted Thermal protection contact Yes Type Installation in pipe Chimney 600 - CL 600
Rated values Phases 1 Ph Nominal frequency [Hz] 50/60 Hz Control 0-10 V
Classification IP protection rating IP54 Certifications CE Insulation class (DIN EN 60085) F Efficiency rating (ErP) E15
Rated values 50 Hz Elektrische Nennleistung 0.8 kW Nominal voltage single-phase 230 V Voltage tolerance -10 - 10 % Nominal current single-phase 4,2 A Speed 1120 U/min Power factor 0.99 Ambient temperature -40 - 40 °C Sound power level Lw 86 dB Sound pressure level Lp 58 dB
Volumetric flow rate 50 Hz Characteristic curve – 0 Pa 13900 m³/h Characteristic curve – 10 Pa 13600 m³/h Characteristic curve – 20 Pa 13200 m³/h Characteristic curve – 30 Pa 12900 m³/h Characteristic curve – 40 Pa 12500 m³/h Characteristic curve – 50 Pa 12200 m³/h
Rated values 60 Hz Elektrische Nennleistung 0.8 kW Nominal voltage single-phase 230 V Voltage tolerance -10 - 10 % Nominal current single-phase 4,2 A Speed 1120 U/min Power factor 0.99 Ambient temperature -40 - 40 °C Sound power level Lw 86 dB Sound pressure level Lp 58 dB
Illustrations may show accessories that are not included in the scope of delivery.
