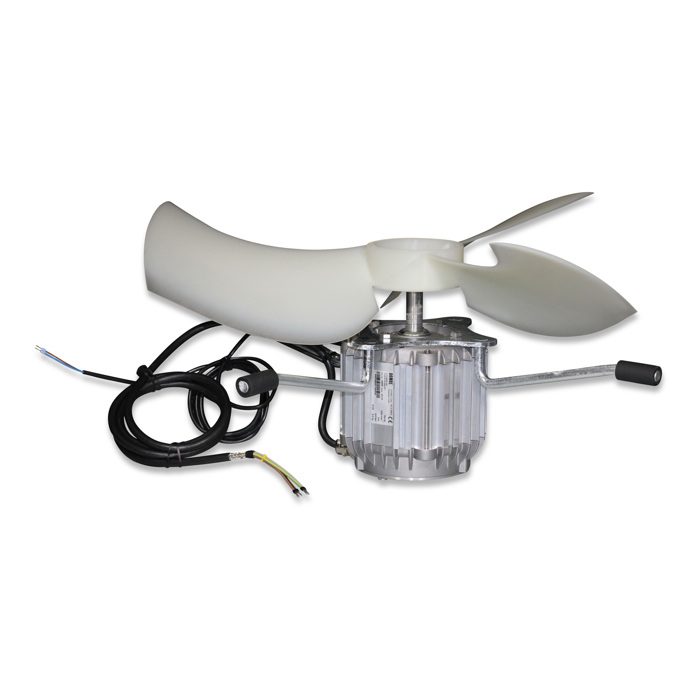

Fan LPC-12 1 Ph 50/60 Hz 230 V 15,100 m³ 4.2 A for CL-600 T Dimensions Width 565.00 mm Actual weight 14.940 kg
Basic data Montiert Mounted Thermal protection contact Yes Type Installation in pipe Chimney 600 - CL 600
Rated values Phases 1 Ph Nominal frequency [Hz] 50/60 Hz Control 0-10 V
Classification IP protection rating IP54 Certifications CE Insulation class (DIN EN 60085) F Efficiency rating (ErP) E15
Rated values 50 Hz Elektrische Nennleistung 0.8 kW Nominal voltage single-phase 230 V Voltage tolerance -10 - 10 % Nominal current single-phase 4,2 A Speed 1225 U/min Power factor 0.99 Ambient temperature -40 - 40 °C Sound power level Lw 88 dB Sound pressure level Lp 60 dB
Volumetric flow rate 50 Hz Characteristic curve – 0 Pa 15100 m³/h Characteristic curve – 10 Pa 14700 m³/h Characteristic curve – 20 Pa 14500 m³/h Characteristic curve – 30 Pa 14100 m³/h Characteristic curve – 40 Pa 13900 m³/h Characteristic curve – 50 Pa 13500 m³/h
Rated values 60 Hz Elektrische Nennleistung 0.8 kW Nominal voltage single-phase 230 V Voltage tolerance -10 - 10 % Nominal current single-phase 4,2 A Speed 1225 U/min Power factor 0.99 Ambient temperature -40 - 40 °C Sound power level Lw 88 dB Sound pressure level Lp 60 dB
Illustrations may show accessories that are not included in the scope of delivery.
