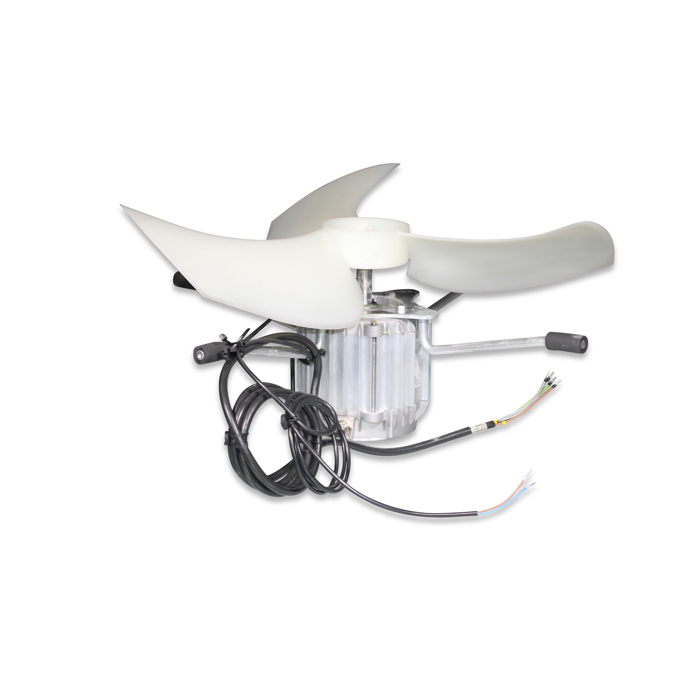

Fan LPC-13 1Ph 50/60Hz 230V 16,000m³ f/CL-600 T Dimensions Length 759.00 mm Width 531.00 mm Height 341.00 mm Actual weight 14.795 kg
Basic data Montiert Mounted Thermal protection contact Yes Type Installation in pipe Chimney 600 - CL 600
Rated values Phases 1 Ph Nominal frequency [Hz] 50/60 Hz Control 0-10 V
Classification IP protection rating IP54 Certifications CE Insulation class (DIN EN 60085) F Efficiency rating (ErP) E15
Rated values 50 Hz Elektrische Nennleistung 0.8 kW Nominal voltage single-phase 230 V Voltage tolerance -10 - 10 % Nominal current single-phase 4,2 A Speed 1325 U/min Power factor 0.99 Ambient temperature -40 - 40 °C Sound power level Lw 91 dB Sound pressure level Lp 63 dB
Volumetric flow rate 50 Hz Characteristic curve – 0 Pa 16000 m³/h Characteristic curve – 10 Pa 15800 m³/h Characteristic curve – 20 Pa 15500 m³/h Characteristic curve – 30 Pa 15200 m³/h Characteristic curve – 40 Pa 14900 m³/h Characteristic curve – 50 Pa 14600 m³/h
Rated values 60 Hz Elektrische Nennleistung 0.8 kW Nominal voltage single-phase 230 V Voltage tolerance -10 - 10 % Nominal current single-phase 4,2 A Speed 1325 U/min Power factor 0.99 Ambient temperature -40 - 40 °C Sound power level Lw 91 dB Sound pressure level Lp 63 dB
Illustrations may show accessories that are not included in the scope of delivery.
