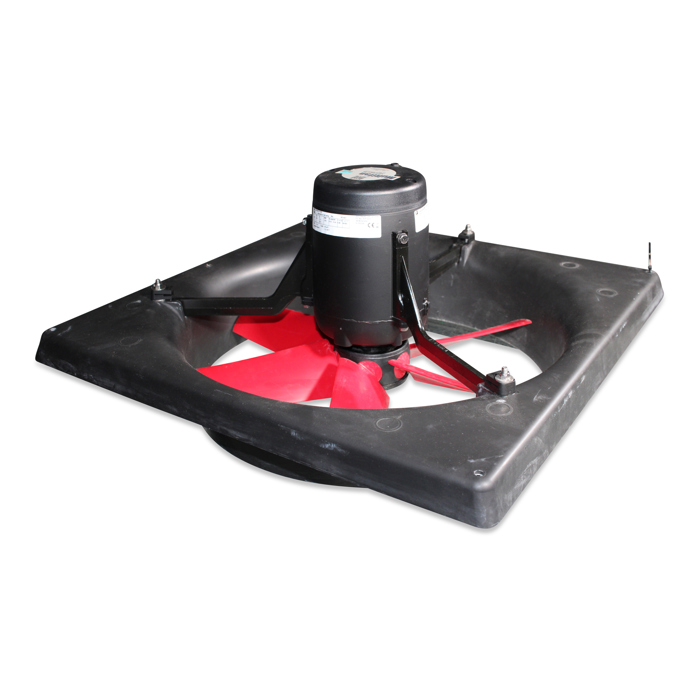

Fan 4E45-Q 6550m³ 230V 50Hz 1.5A

SKU

60-47-5545

Sales unit 1 pc

Dimensions
Length	594.00	mm
Width	584.00	mm
Height	276.00	mm
Actual weight	9.811	kg

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation at a wall
Weight	11.6	kg

Rated values
Phases	1	Ph
Nominal frequency [Hz]	50	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP55
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E20

Dimensions
Width	593	mm
Height	593	mm
Total depth	276	mm
Diameter	838	mm
Other dimension	460	mm

Rated values 50 Hz
Elektrische Nennleistung	0.3	kW
Nominal voltage single-phase	230	V
Nominal current single-phase	1,5	A
Speed	1405	U/min
Power factor	0.93
Ambient temperature	-25 - 40	°C
Sound power level Lw	77	dB
Sound pressure level Lp	67	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	6550	m³/h
Characteristic curve – 10 Pa	6350	m³/h
Characteristic curve – 20 Pa	6200	m³/h
Characteristic curve – 30 Pa	6000	m³/h
Characteristic curve – 40 Pa	5800	m³/h
Characteristic curve – 50 Pa	5600	m³/h
Characteristic curve – 60 Pa	5400	m³/h
Characteristic curve – 70 Pa	5200	m³/h
Characteristic curve – 80 Pa	4900	m³/h
Characteristic curve – 90 Pa	4600	m³/h

Spec. power 50 Hz
Characteristic curve – 0 Pa	46.4	W/(1000m³/h)
Characteristic curve – 10 Pa	48.8	W/(1000m³/h)
Characteristic curve – 20 Pa	51.1	W/(1000m³/h)
Characteristic curve – 30 Pa	53.8	W/(1000m³/h)
Characteristic curve – 40 Pa	56.5	W/(1000m³/h)
Characteristic curve – 50 Pa	59.1	W/(1000m³/h)
Characteristic curve – 60 Pa	62.2	W/(1000m³/h)
Characteristic curve – 70 Pa	65.3	W/(1000m³/h)
Characteristic curve – 80 Pa	69.2	W/(1000m³/h)
Characteristic curve – 90 Pa	73.3	W/(1000m³/h)

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
