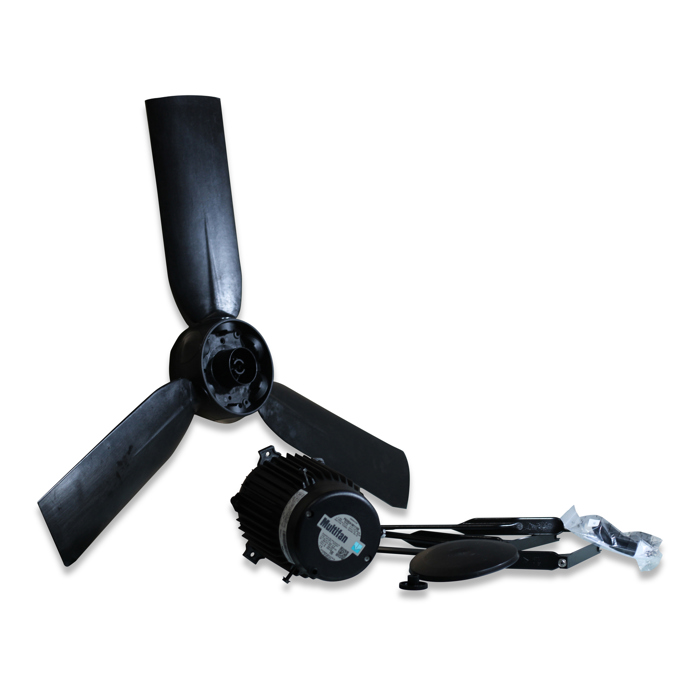

Fan incorporable 6D92-3PG28-Q 25000m³ 400V 1130W 3.2A

SKU

60-47-6992

Sales unit 1 pc

Dimensions
Length	752.00	mm
Width	233.00	mm
Height	256.00	mm
Actual weight	14.925	kg

Basic data
Montiert	Mounted
Type	Installation in pipe

Rated values
Phases	3	Ph
Nominal frequency [Hz]	50	Hz
Control	Frequency converter / Transformer

Classification
IP protection rating	IP55
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Rated values 50 Hz
Elektrische Nennleistung	1.1	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Nominal current delta connection	4,6	A
Nominal current star connection	2,7	A
Speed	885	U/min
Ambient temperature	-25 - 40	°C
Sound power level Lw	89	dB
Sound pressure level Lp	64	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	24700	m³/h
Characteristic curve – 10 Pa	23900	m³/h
Characteristic curve – 20 Pa	23100	m³/h
Characteristic curve – 30 Pa	22300	m³/h
Characteristic curve – 40 Pa	21350	m³/h
Characteristic curve – 50 Pa	20400	m³/h
Characteristic curve – 60 Pa	19267	m³/h
Characteristic curve – 70 Pa	18133	m³/h
Characteristic curve – 80 Pa	17000	m³/h

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
