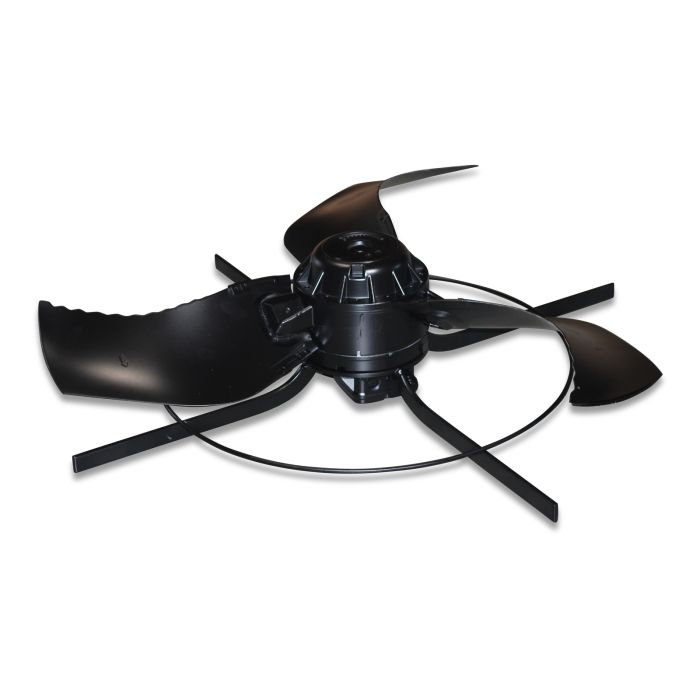

Fan FF091-6DT 3x400V 50/60Hz 1.9/2.4A f/pipe

SKU

60-47-7907

Sales unit 1 pc

Dimensions
Length	460.00	mm
Width	459.00	mm
Height	176.00	mm
Actual weight	23.270	kg

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation in pipe
Chimney	920 - BD & CL920

Rated values
Phases	3	Ph
Nominal frequency [Hz]	50/60	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Rated values 50 Hz
Elektrische Nennleistung	0.92	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Nominal current delta connection	3,3	A
Nominal current star connection	1,9	A
Speed	880	U/min
Power factor	0.69
Ambient temperature	-40 - 70	°C
Sound power level Lw	75	dB
Sound pressure level Lp	50	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	24979	m³/h
Characteristic curve – 10 Pa	23989	m³/h
Characteristic curve – 20 Pa	22935	m³/h
Characteristic curve – 30 Pa	21725	m³/h
Characteristic curve – 40 Pa	20440	m³/h
Characteristic curve – 50 Pa	19173	m³/h
Characteristic curve – 60 Pa	17633	m³/h
Characteristic curve – 70 Pa	15631	m³/h
Characteristic curve – 80 Pa	13520	m³/h
Characteristic curve – 90 Pa	11001	m³/h
Characteristic curve – 100 Pa	7731	m³/h
Characteristic curve – 110 Pa	4323	m³/h

Spec. power 50 Hz
Characteristic curve – 0 Pa	28.5	W/(1000m³/h)
Characteristic curve – 10 Pa	30.7	W/(1000m³/h)
Characteristic curve – 20 Pa	33.3	W/(1000m³/h)
Characteristic curve – 30 Pa	36.3	W/(1000m³/h)
Characteristic curve – 40 Pa	39.8	W/(1000m³/h)
Characteristic curve – 50 Pa	43.3	W/(1000m³/h)
Characteristic curve – 60 Pa	47.6	W/(1000m³/h)
Characteristic curve – 70 Pa	53.5	W/(1000m³/h)
Characteristic curve – 80 Pa	61.6	W/(1000m³/h)
Characteristic curve – 90 Pa	76	W/(1000m³/h)
Characteristic curve – 100 Pa	108.4	W/(1000m³/h)
Characteristic curve – 110 Pa	197.2	W/(1000m³/h)

Rated values 60 Hz
Elektrische Nennleistung	1.3	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Nominal current delta connection	4,2	A
Nominal current star connection	2,4	A
Speed	930	U/min
Power factor	0.77
Ambient temperature	-40 - 45	°C

Volumetric flow rate 60 Hz
Characteristic curve – 0 Pa	25382	m³/h
Characteristic curve – 10 Pa	24500	m³/h
Characteristic curve – 20 Pa	23621	m³/h
Characteristic curve – 30 Pa	22700	m³/h
Characteristic curve – 40 Pa	21800	m³/h
Characteristic curve – 50 Pa	20850	m³/h
Characteristic curve – 60 Pa	19840	m³/h
Characteristic curve – 70 Pa	18800	m³/h
Characteristic curve – 80 Pa	17766	m³/h
Characteristic curve – 90 Pa	16600	m³/h
Characteristic curve – 100 Pa	15139	m³/h

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
