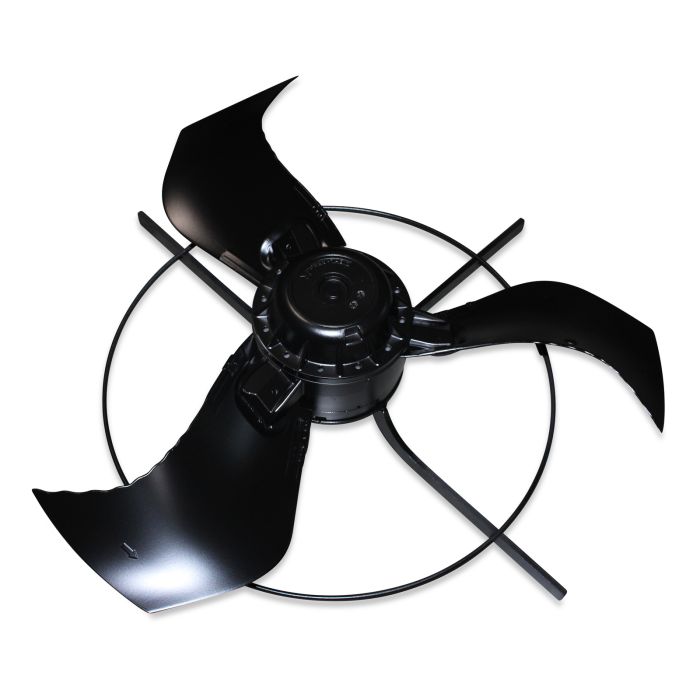

Fan FF080-6ET(S) 1x230V 50Hz 4A f/pipe

SKU

60-47-7915

Sales unit 1 pc

Dimensions
Length	840.00	mm
Width	820.00	mm
Height	273.00	mm
Actual weight	24.005	kg

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation in pipe
Weight	18.5	kg
Chimney	800 - CL 800

Rated values
Phases	1	Ph
Nominal frequency [Hz]	50	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Rated values 50 Hz
Elektrische Nennleistung	0.84	kW
Nominal voltage single-phase	230	V
Voltage tolerance	10	%
Nominal current single-phase	4	A
Speed	890	U/min
Ambient temperature	-35 - 55	°C
Sound power level Lw	80	dB
Sound pressure level Lp	55	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	21552	m³/h
Characteristic curve – 10 Pa	20495.4	m³/h
Characteristic curve – 20 Pa	19644.55556	m³/h
Characteristic curve – 30 Pa	18807.5	m³/h
Characteristic curve – 40 Pa	18044.63636	m³/h
Characteristic curve – 50 Pa	17161.44444	m³/h
Characteristic curve – 60 Pa	16131.44444	m³/h
Characteristic curve – 70 Pa	14917.85714	m³/h
Characteristic curve – 80 Pa	13308.66667	m³/h

Spec. power 50 Hz
Characteristic curve – 0 Pa	33.36117298	W/(1000m³/h)
Characteristic curve – 10 Pa	36.44720279	W/(1000m³/h)
Characteristic curve – 20 Pa	39.13439404	W/(1000m³/h)
Characteristic curve – 30 Pa	41.89817892	W/(1000m³/h)
Characteristic curve – 40 Pa	44.56121436	W/(1000m³/h)
Characteristic curve – 50 Pa	47.85274485	W/(1000m³/h)
Characteristic curve – 60 Pa	51.94134299	W/(1000m³/h)
Characteristic curve – 70 Pa	57.1031841	W/(1000m³/h)
Characteristic curve – 80 Pa	63.79301708	W/(1000m³/h)

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
