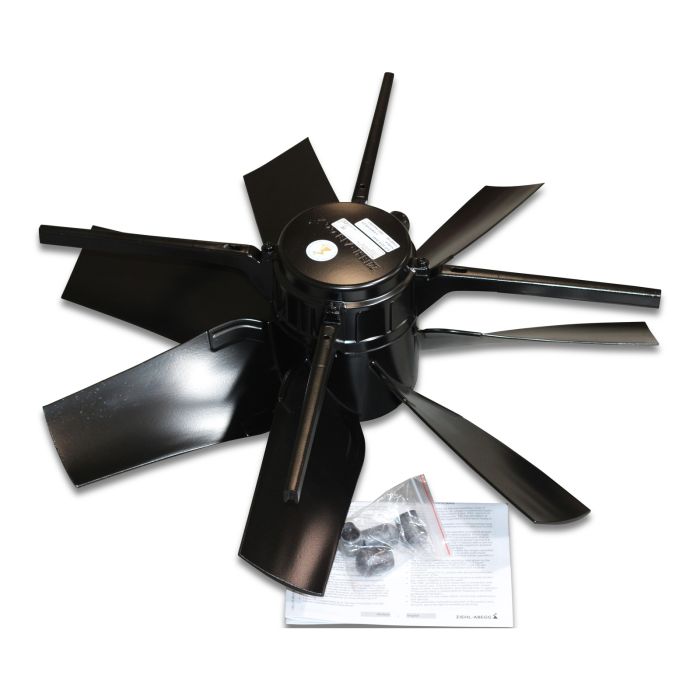

Fan FC063-8DT-REV 8900m³ 400V 198W 0.65A

SKU

60-47-8764

Sales unit 1 pc

Dimensions
Length	615.00	mm
Width	615.00	mm
Height	193.00	mm
Actual weight	12.150	kg

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation in pipe

Rated values
Phases	3	Ph
Nominal frequency [Hz]	50	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15 + FC

Rated values 50 Hz
Elektrische Nennleistung	0.31	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Nominal current delta connection	1,1	A
Nominal current star connection	0,65	A
Speed	630	U/min
Power factor	0.66
Ambient temperature	-40 - 40	°C

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	8838	m³/h
Characteristic curve – 10 Pa	8335	m³/h
Characteristic curve – 20 Pa	7742	m³/h
Characteristic curve – 30 Pa	7055	m³/h
Characteristic curve – 40 Pa	6047	m³/h
Characteristic curve – 50 Pa	5100	m³/h

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
