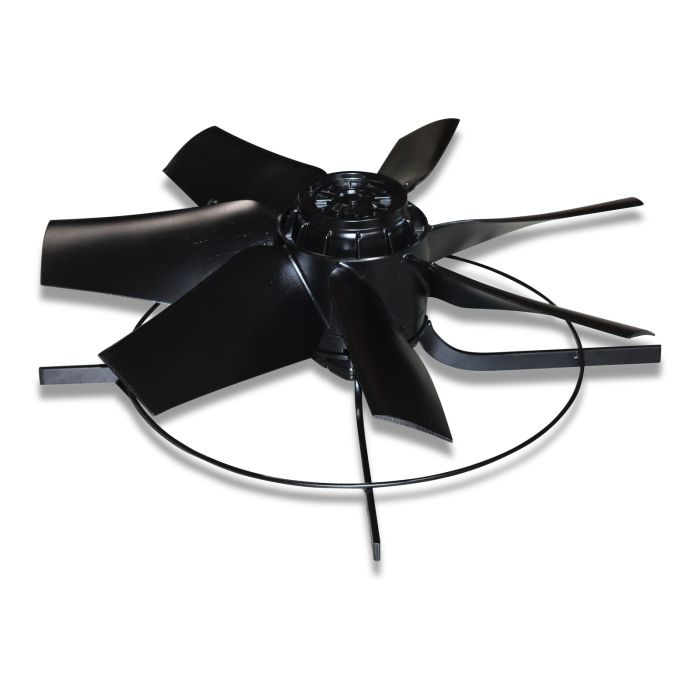

Fan FC080-8DT-REV 17500m³ 400V 600W 1.80A Dimensions Length 1.00 mm Width 1.00 mm Height 1.00 mm Actual weight 26.875 kg
Basic data Montiert Mounted Thermal protection contact Yes Type Installation in pipe
Rated values Phases 3 Ph Nominal frequency [Hz] 50/60 Hz Control Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac
Classification IP protection rating IP54 Certifications CE Insulation class (DIN EN 60085) F Efficiency rating (ErP) E15
Rated values 50 Hz Elektrische Nennleistung 0.69 kW Nominal voltage delta connection 230 V Nominal voltage star connection 400 V Nominal current delta connection 3 A Nominal current star connection 1,75 A Speed 670 U/min Power factor 0.57 Ambient temperature -40 - 65 °C
Volumetric flow rate 50 Hz Characteristic curve – 0 Pa 18374 m³/h Characteristic curve – 10 Pa 17642 m³/h Characteristic curve – 20 Pa 16962 m³/h Characteristic curve – 30 Pa 16283 m³/h Characteristic curve – 40 Pa 15569 m³/h Characteristic curve – 50 Pa 14666 m³/h Characteristic curve – 60 Pa 13532 m³/h Characteristic curve – 70 Pa 11739 m³/h
Spec. power 50 Hz Characteristic curve – 0 Pa 27 W/(1000m³/h) Characteristic curve – 10 Pa 29.9 W/(1000m³/h) Characteristic curve – 20 Pa 32.7 W/(1000m³/h) Characteristic curve – 30 Pa 35.5 W/(1000m³/h) Characteristic curve – 40 Pa 38.6 W/(1000m³/h) Characteristic curve – 50 Pa 42.4 W/(1000m³/h) Characteristic curve – 60 Pa 47.1 W/(1000m³/h) Characteristic curve – 70 Pa 55.2 W/(1000m³/h)
Rated values 60 Hz Elektrische Nennleistung 1 kW Nominal voltage delta connection 230 V Nominal voltage star connection 400 V Nominal current delta connection 3,8 A Nominal current star connection 2,2 A Speed 720 U/min Power factor 0.66 Ambient temperature -40 - 60 °C
Illustrations may show accessories that are not included in the scope of delivery.
