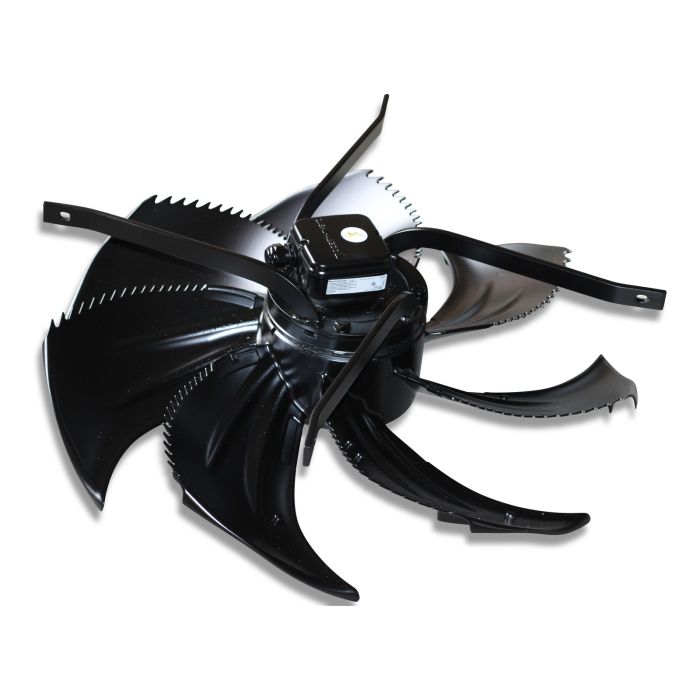

Fan FN071-8DT-REV 3x400V 50/60Hz 1.1/1.3A

SKU

60-47-8871

Sales unit 1 pc

Dimensions
Length	728.00	mm
Width	718.00	mm
Height	235.00	mm
Actual weight	23.989	kg

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation in pipe
Chimney	710 - BD 730

Rated values
Phases	3	Ph
Nominal frequency [Hz]	50/60	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Rated values 50 Hz
Elektrische Nennleistung	0.47	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Nominal current delta connection	1,9	A
Nominal current star connection	1,1	A
Speed	680	U/min
Power factor	0.61
Ambient temperature	-40 - 70	°C
Sound power level Lw	64	dB
Sound pressure level Lp	39	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	10921	m³/h
Characteristic curve – 10 Pa	10524	m³/h
Characteristic curve – 20 Pa	10085	m³/h
Characteristic curve – 30 Pa	9603	m³/h
Characteristic curve – 40 Pa	8978	m³/h
Characteristic curve – 50 Pa	8397	m³/h
Characteristic curve – 60 Pa	7827	m³/h
Characteristic curve – 70 Pa	7182	m³/h
Characteristic curve – 80 Pa	6410	m³/h
Characteristic curve – 90 Pa	5328	m³/h

Rated values 60 Hz
Elektrische Nennleistung	0.67	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Nominal current delta connection	2,3	A
Nominal current star connection	1,3	A
Speed	740	U/min
Power factor	0.73
Ambient temperature	-40 - 70	°C

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
