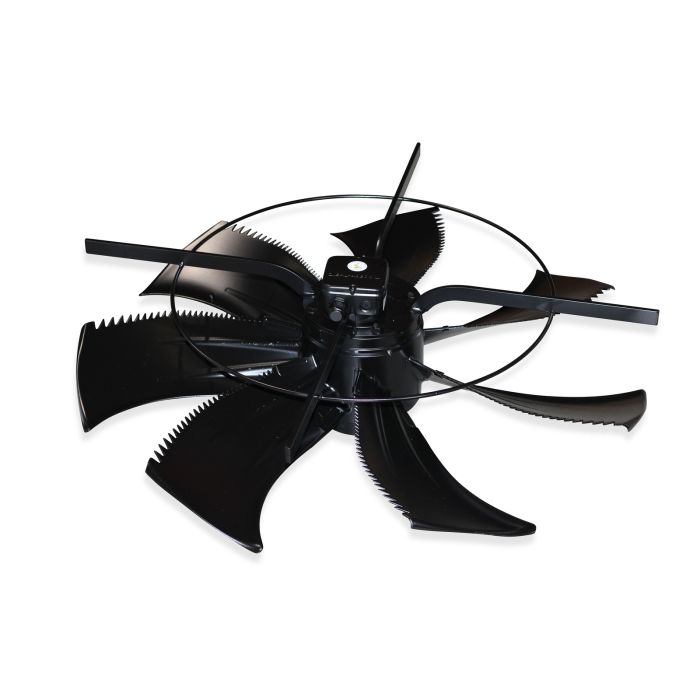

Fan FN091-8DT-REV 3x400V 50/60Hz 2.2/2.5A

SKU

60-47-8874

Sales unit 1 pc

Dimensions
Length	908.00	mm
Width	908.00	mm
Height	263.00	mm
Actual weight	29.892	kg

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation in pipe
Chimney	920 - BD & CL920

Rated values
Phases	3	Ph
Nominal frequency [Hz]	50/60	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Rated values 50 Hz
Elektrische Nennleistung	0.9	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Nominal current delta connection	3,8	A
Nominal current star connection	2,2	A
Speed	660	U/min
Power factor	0.61
Ambient temperature	-40 - 70	°C
Sound power level Lw	72	dB
Sound pressure level Lp	47	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	20165	m³/h
Characteristic curve – 10 Pa	19522	m³/h
Characteristic curve – 20 Pa	18865	m³/h
Characteristic curve – 30 Pa	18080	m³/h
Characteristic curve – 40 Pa	17276	m³/h
Characteristic curve – 50 Pa	16452	m³/h
Characteristic curve – 60 Pa	15520	m³/h
Characteristic curve – 70 Pa	14501	m³/h
Characteristic curve – 80 Pa	13394	m³/h
Characteristic curve – 90 Pa	12199	m³/h
Characteristic curve – 100 Pa	10672	m³/h
Characteristic curve – 110 Pa	8959	m³/h

Rated values 60 Hz
Elektrische Nennleistung	1.25	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Nominal current delta connection	4,4	A
Nominal current star connection	2,5	A
Speed	700	U/min
Power factor	0.71
Ambient temperature	-40 - 70	°C

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
