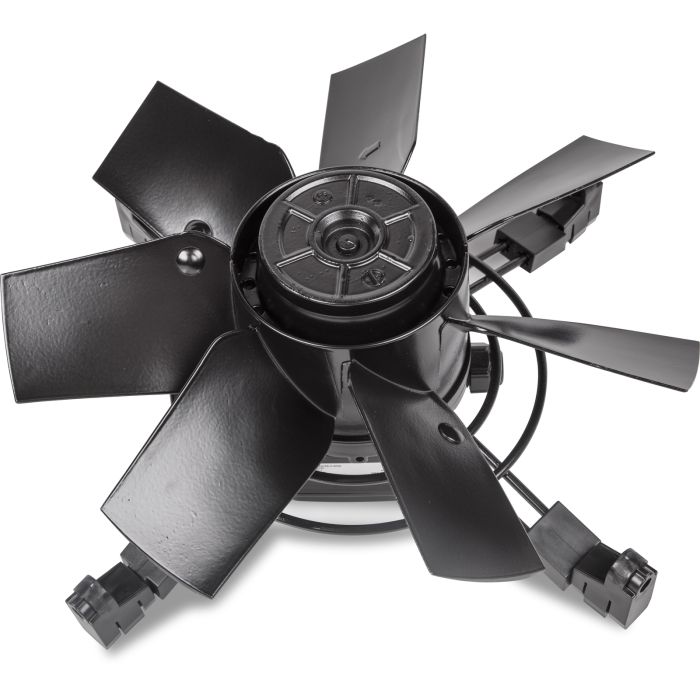

Fan FC035-4ET 3460m³ 230V 157W 1.0A f/tube

SKU

60-47-9035

Sales unit 1 pc

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation in pipe
Chimney	350 - BD 370

Rated values
Phases	1	Ph
Nominal frequency [Hz]	50	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Rated values 50 Hz
Elektrische Nennleistung	0.16	kW
Nominal voltage single-phase	230	V
Nominal current single-phase	0,75	A
Speed	1370	U/min
Ambient temperature	-25 - 40	°C
Sound power level Lw	69	dB
Sound pressure level Lp	44	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	3725	m³/h
Characteristic curve – 10 Pa	3556	m³/h
Characteristic curve – 20 Pa	3277	m³/h
Characteristic curve – 30 Pa	2930	m³/h
Characteristic curve – 40 Pa	2716	m³/h

Spec. power 50 Hz
Characteristic curve – 0 Pa	33.6	W/(1000m³/h)
Characteristic curve – 10 Pa	38.5	W/(1000m³/h)
Characteristic curve – 20 Pa	43.9	W/(1000m³/h)
Characteristic curve – 30 Pa	48.5	W/(1000m³/h)
Characteristic curve – 40 Pa	52.7	W/(1000m³/h)

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
