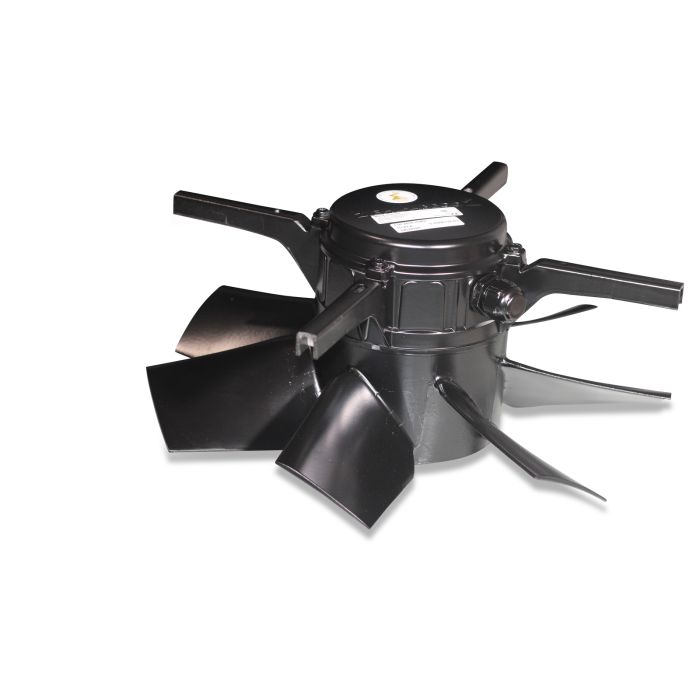

Fan FC040-4ET 4000m³ 230V 260W 1,2A f/tube ErP Dimensions Length 389.00 mm Width 382.00 mm Height 181.00 mm Actual weight 7.670 kg
Basic data Montiert Mounted Thermal protection contact Yes Type Installation in pipe Chimney 400 - BD 420
Rated values Phases 1 Ph Nominal frequency [Hz] 50 Hz Control Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac
Classification IP protection rating IP54 Certifications CE Insulation class (DIN EN 60085) F Efficiency rating (ErP) E15
Rated values 50 Hz Elektrische Nennleistung 0.26 kW Nominal voltage single-phase 230 V Nominal current single-phase 1,2 A Speed 1370 U/min Ambient temperature -25 - 70 °C Sound power level Lw 74 dB Sound pressure level Lp 49 dB
Volumetric flow rate 50 Hz Characteristic curve – 0 Pa 5025 m³/h Characteristic curve – 10 Pa 4865 m³/h Characteristic curve – 20 Pa 4649 m³/h Characteristic curve – 30 Pa 4354 m³/h Characteristic curve – 40 Pa 3989 m³/h Characteristic curve – 50 Pa 3667 m³/h
Spec. power 50 Hz Characteristic curve – 0 Pa 36.8 W/(1000m³/h) Characteristic curve – 10 Pa 41.5 W/(1000m³/h) Characteristic curve – 20 Pa 45.8 W/(1000m³/h) Characteristic curve – 30 Pa 50.1 W/(1000m³/h) Characteristic curve – 40 Pa 54.4 W/(1000m³/h) Characteristic curve – 50 Pa 60 W/(1000m³/h)
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
