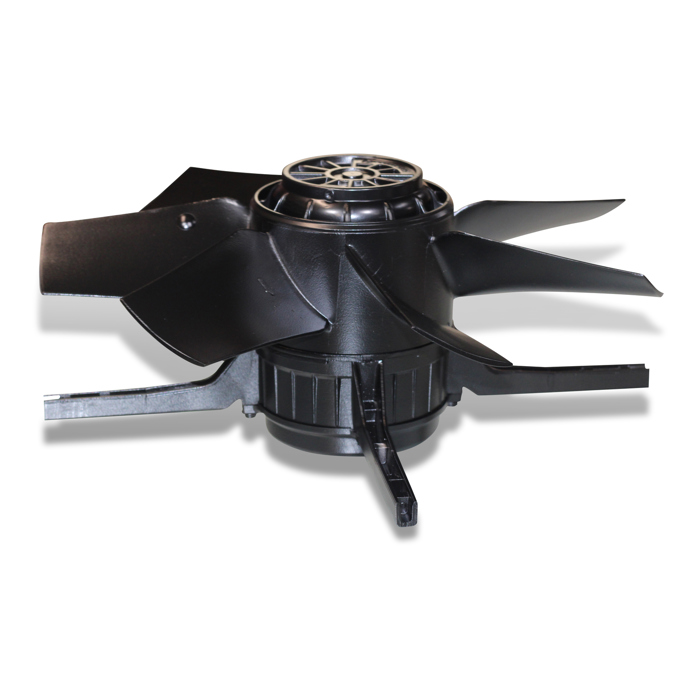

Fan FC045-4ET 6350m³ 230V 341W 2.3A f/tube

SKU

60-47-9045

Sales unit 1 pc

Dimensions
Length	443.00	mm
Width	436.00	mm
Height	196.00	mm
Actual weight	9.535	kg

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation in pipe
Chimney	450 - BD 470

Rated values
Phases	1	Ph
Nominal frequency [Hz]	50	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Rated values 50 Hz
Elektrische Nennleistung	0.38	kW
Nominal voltage single-phase	230	V
Nominal current single-phase	1,9	A
Speed	1365	U/min
Ambient temperature	-25 - 70	°C

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	7000	m³/h
Characteristic curve – 10 Pa	6800	m³/h
Characteristic curve – 20 Pa	6500	m³/h
Characteristic curve – 30 Pa	6200	m³/h
Characteristic curve – 40 Pa	5900	m³/h
Characteristic curve – 50 Pa	5600	m³/h

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
