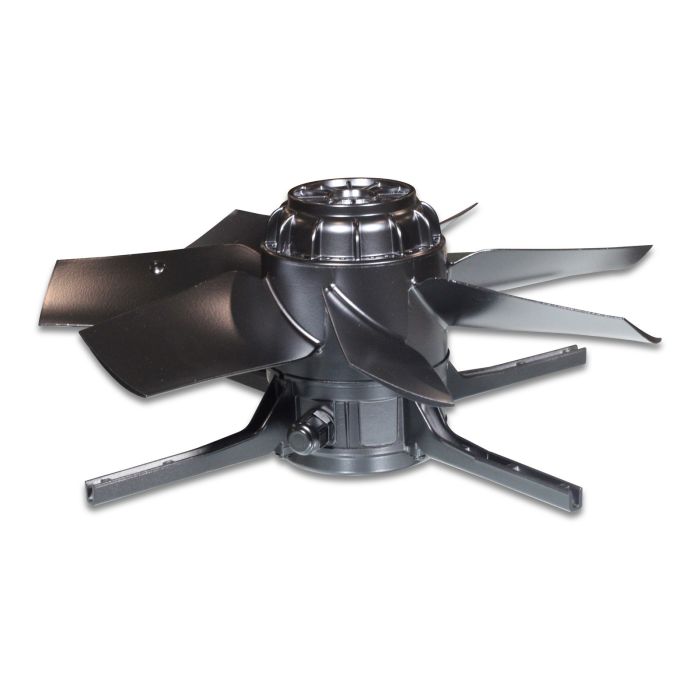

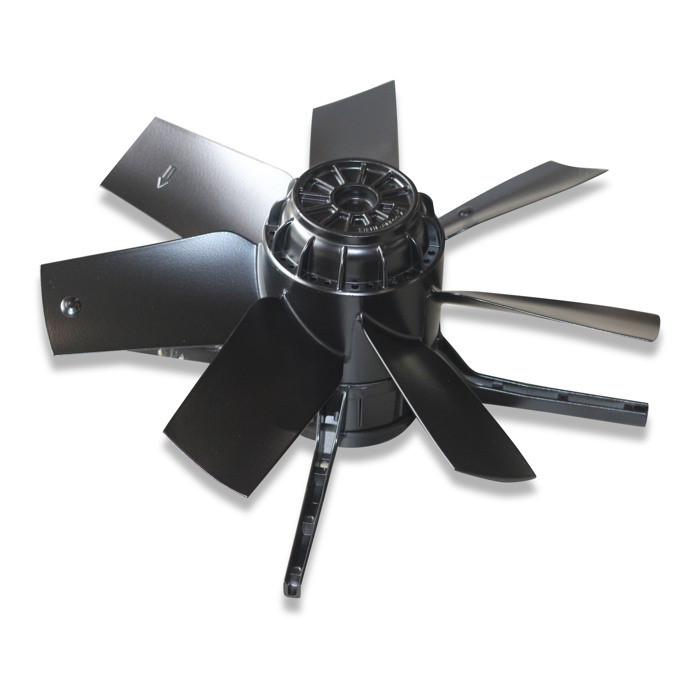

Fan FC050-4ET 8000m³ 230V 450W 2.7A f/tube

SKU

60-47-9050

Sales unit 1 pc

Dimensions
Length	489.00	mm
Width	475.00	mm
Height	216.00	mm
Actual weight	12.219	kg

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation in pipe
Chimney	500 - BD 520

Rated values
Phases	1	Ph
Nominal frequency [Hz]	50	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Rated values 50 Hz
Elektrische Nennleistung	0.51	kW
Nominal voltage single-phase	230	V
Nominal current single-phase	2,3	A
Speed	1310	U/min
Ambient temperature	-25 - 40	°C
Sound power level Lw	76	dB
Sound pressure level Lp	51	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	8700	m³/h
Characteristic curve – 10 Pa	8500	m³/h
Characteristic curve – 20 Pa	8200	m³/h
Characteristic curve – 30 Pa	8000	m³/h
Characteristic curve – 40 Pa	7700	m³/h
Characteristic curve – 50 Pa	7400	m³/h
Characteristic curve – 60 Pa	7000	m³/h
Characteristic curve – 70 Pa	6700	m³/h

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
