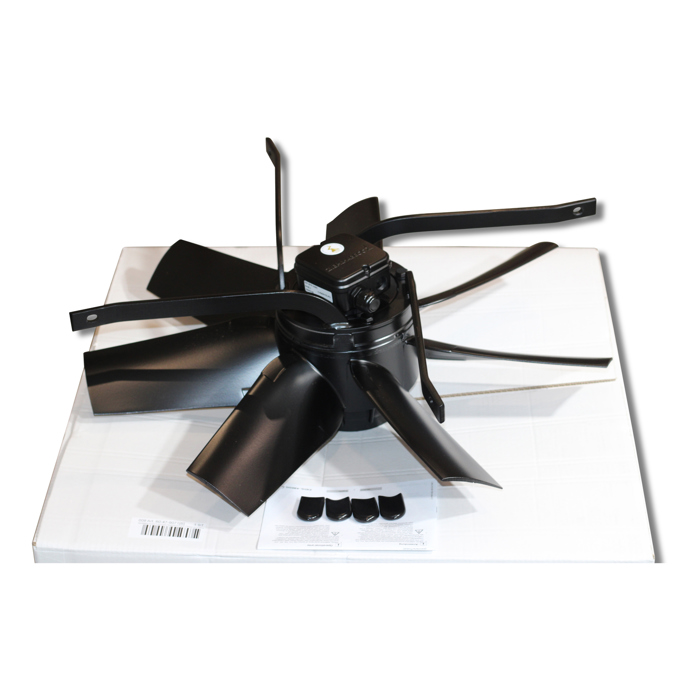

Fan FC071-6ET(R) 16450m³ 200-250V 785W 4.6A f/tube

SKU

60-47-9071

Sales unit 1 pc

Dimensions
Length	728.00	mm
Width	720.00	mm
Height	238.00	mm
Actual weight	25.355	kg

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation in pipe
Chimney	710 - BD 730

Rated values
Phases	1	Ph
Nominal frequency [Hz]	50	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Rated values 50 Hz
Elektrische Nennleistung	0.89	kW
Nominal voltage single-phase	230	V
Nominal current single-phase	4,1	A
Speed	850	U/min
Ambient temperature	-25 - 60	°C
Sound power level Lw	79	dB
Sound pressure level Lp	54	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	16450	m³/h
Characteristic curve – 10 Pa	16016	m³/h
Characteristic curve – 20 Pa	15566	m³/h
Characteristic curve – 30 Pa	15099	m³/h
Characteristic curve – 40 Pa	14620	m³/h
Characteristic curve – 50 Pa	14049	m³/h
Characteristic curve – 60 Pa	13430	m³/h
Characteristic curve – 70 Pa	12776	m³/h
Characteristic curve – 80 Pa	12087	m³/h
Characteristic curve – 90 Pa	11323	m³/h
Characteristic curve – 100 Pa	10355	m³/h

Spec. power 50 Hz
Characteristic curve – 0 Pa	47.6	W/(1000m³/h)
Characteristic curve – 10 Pa	50.14	W/(1000m³/h)
Characteristic curve – 20 Pa	52.64	W/(1000m³/h)
Characteristic curve – 30 Pa	55.2	W/(1000m³/h)
Characteristic curve – 40 Pa	58.04	W/(1000m³/h)
Characteristic curve – 50 Pa	61.03	W/(1000m³/h)
Characteristic curve – 60 Pa	64.56	W/(1000m³/h)
Characteristic curve – 70 Pa	68.43	W/(1000m³/h)
Characteristic curve – 80 Pa	72.77	W/(1000m³/h)
Characteristic curve – 90 Pa	78.07	W/(1000m³/h)
Characteristic curve – 100 Pa	85.74	W/(1000m³/h)

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
