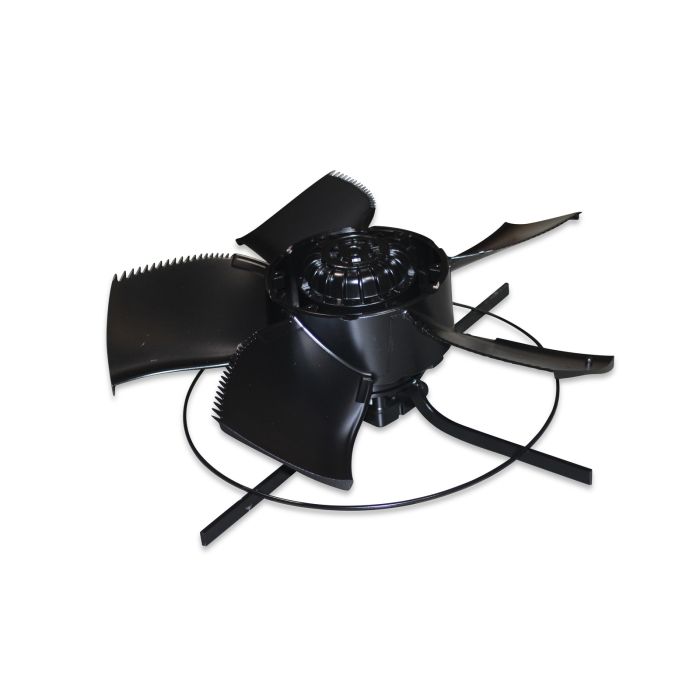

Fan FN080-6ET 230V 1Ph 50/60Hz 6.2A 21200m³/h

SKU

60-47-9081

Sales unit 1 pc

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation in pipe
Chimney	820 - BD 820

Rated values
Phases	1	Ph
Nominal frequency [Hz]	50/60	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Rated values 50 Hz
Elektrische Nennleistung	1.3	kW
Nominal voltage single-phase	230	V
Nominal current single-phase	6,2	A
Speed	870	U/min
Ambient temperature	-25 - 70	°C
Sound power level Lw	84	dB
Sound pressure level Lp	59	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	21191	m³/h
Characteristic curve – 10 Pa	20726	m³/h
Characteristic curve – 20 Pa	20256	m³/h
Characteristic curve – 30 Pa	19785	m³/h
Characteristic curve – 40 Pa	19301	m³/h
Characteristic curve – 50 Pa	18760	m³/h
Characteristic curve – 60 Pa	18061	m³/h
Characteristic curve – 70 Pa	17326	m³/h
Characteristic curve – 80 Pa	16451	m³/h
Characteristic curve – 90 Pa	15461	m³/h
Characteristic curve – 100 Pa	14487	m³/h

Spec. power 50 Hz
Characteristic curve – 0 Pa	39.3	W/(1000m³/h)
Characteristic curve – 10 Pa	42.4	W/(1000m³/h)
Characteristic curve – 20 Pa	45.2	W/(1000m³/h)
Characteristic curve – 30 Pa	47.8	W/(1000m³/h)
Characteristic curve – 40 Pa	50.3	W/(1000m³/h)
Characteristic curve – 50 Pa	53.3	W/(1000m³/h)
Characteristic curve – 60 Pa	57	W/(1000m³/h)
Characteristic curve – 70 Pa	60.8	W/(1000m³/h)
Characteristic curve – 80 Pa	65.3	W/(1000m³/h)
Characteristic curve – 90 Pa	71	W/(1000m³/h)
Characteristic curve – 100 Pa	77.4	W/(1000m³/h)

Rated values 60 Hz
Elektrische Nennleistung	1.75	kW
Nominal voltage single-phase	230	V
Nominal current single-phase	8	A
Speed	910	U/min
Ambient temperature	-25 - 50	°C
Sound power level Lw	86	dB
Sound pressure level Lp	61	dB

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
