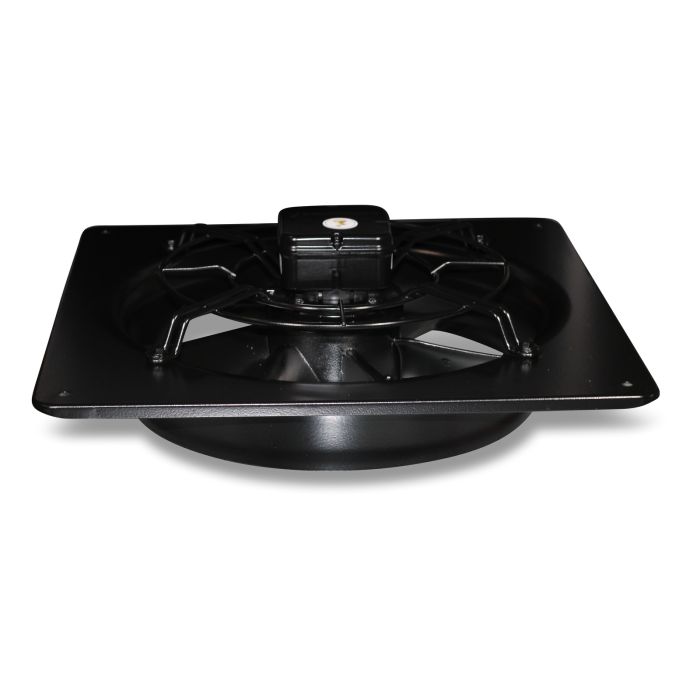

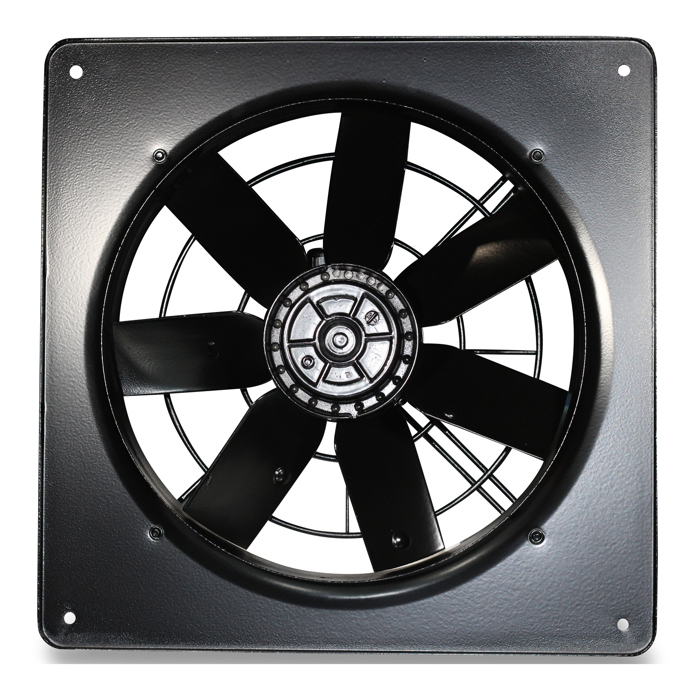

Fan FC035-4EQ 3460m³ 230V 157W 1.0A

SKU

60-47-9135

Sales unit 1 pc

Dimensions
Length	487.00	mm
Width	485.00	mm
Height	176.00	mm
Actual weight	8.127	kg

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation at a wall

Rated values
Phases	1	Ph
Nominal frequency [Hz]	50	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Dimensions
Width	435	mm
Height	485	mm
Total depth	177	mm
Diameter	375	mm

Rated values 50 Hz
Elektrische Nennleistung	0.16	kW
Nominal voltage single-phase	230	V
Nominal current single-phase	0,75	A
Speed	1370	U/min
Ambient temperature	-25 - 40	°C
Sound power level Lw	69	dB
Sound pressure level Lp	44	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	3466	m³/h
Characteristic curve – 10 Pa	3322	m³/h
Characteristic curve – 20 Pa	3182	m³/h
Characteristic curve – 30 Pa	3047	m³/h
Characteristic curve – 40 Pa	2916	m³/h
Characteristic curve – 50 Pa	2775	m³/h
Characteristic curve – 60 Pa	2532	m³/h
Characteristic curve – 70 Pa	2260	m³/h

Spec. power 50 Hz
Characteristic curve – 0 Pa	45.5	W/(1000m³/h)
Characteristic curve – 10 Pa	48.8	W/(1000m³/h)
Characteristic curve – 20 Pa	51.8	W/(1000m³/h)
Characteristic curve – 30 Pa	54.7	W/(1000m³/h)
Characteristic curve – 40 Pa	58.2	W/(1000m³/h)
Characteristic curve – 50 Pa	61.1	W/(1000m³/h)
Characteristic curve – 60 Pa	67.3	W/(1000m³/h)
Characteristic curve – 70 Pa	75.2	W/(1000m³/h)

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
