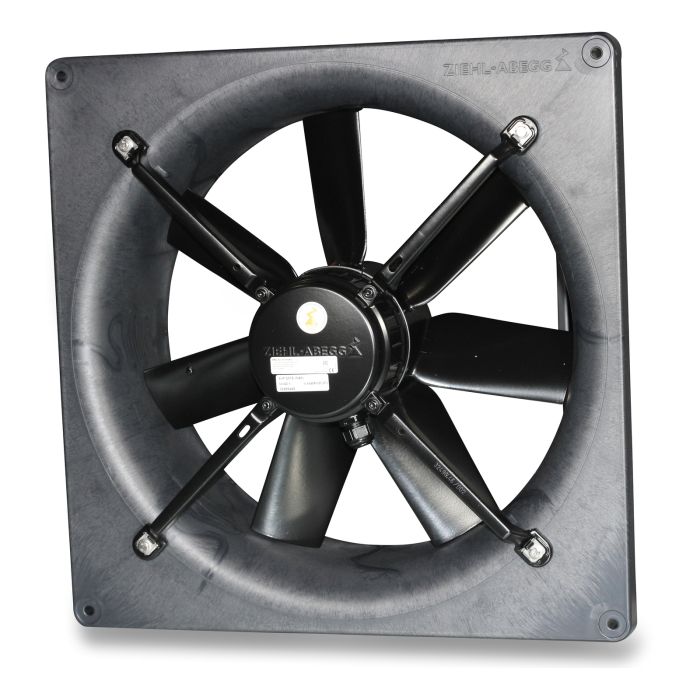

Fan FC045-4EQ 6350m³ 230V 341W 2.3A Kst

SKU

60-47-9146

Sales unit 1 pc

Dimensions
Length	575.00	mm
Width	541.00	mm
Height	208.00	mm
Actual weight	13.025	kg

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation at a wall
Weight	13.025	kg

Rated values
Phases	1	Ph
Nominal frequency [Hz]	50	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Dimensions
Width	535	mm
Height	575	mm
Total depth	211	mm
Diameter	515	mm

Rated values 50 Hz
Elektrische Nennleistung	0.38	kW
Nominal voltage single-phase	230	V
Nominal current single-phase	1,9	A
Speed	1365	U/min
Ambient temperature	-25 - 70	°C

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	6354	m³/h
Characteristic curve – 10 Pa	6259	m³/h
Characteristic curve – 20 Pa	6164	m³/h
Characteristic curve – 30 Pa	6036	m³/h
Characteristic curve – 40 Pa	5833	m³/h
Characteristic curve – 50 Pa	5570	m³/h
Characteristic curve – 60 Pa	5368	m³/h
Characteristic curve – 70 Pa	5117	m³/h
Characteristic curve – 80 Pa	4733	m³/h
Characteristic curve – 90 Pa	4434	m³/h

Spec. power 50 Hz
Characteristic curve – 0 Pa	53.5	W/(1000m³/h)
Characteristic curve – 10 Pa	55.9	W/(1000m³/h)
Characteristic curve – 20 Pa	56	W/(1000m³/h)
Characteristic curve – 30 Pa	61.5	W/(1000m³/h)
Characteristic curve – 40 Pa	65.1	W/(1000m³/h)
Characteristic curve – 50 Pa	69.1	W/(1000m³/h)
Characteristic curve – 60 Pa	73.1	W/(1000m³/h)
Characteristic curve – 70 Pa	77.2	W/(1000m³/h)
Characteristic curve – 80 Pa	84.5	W/(1000m³/h)
Characteristic curve – 90 Pa	89.8	W/(1000m³/h)

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
