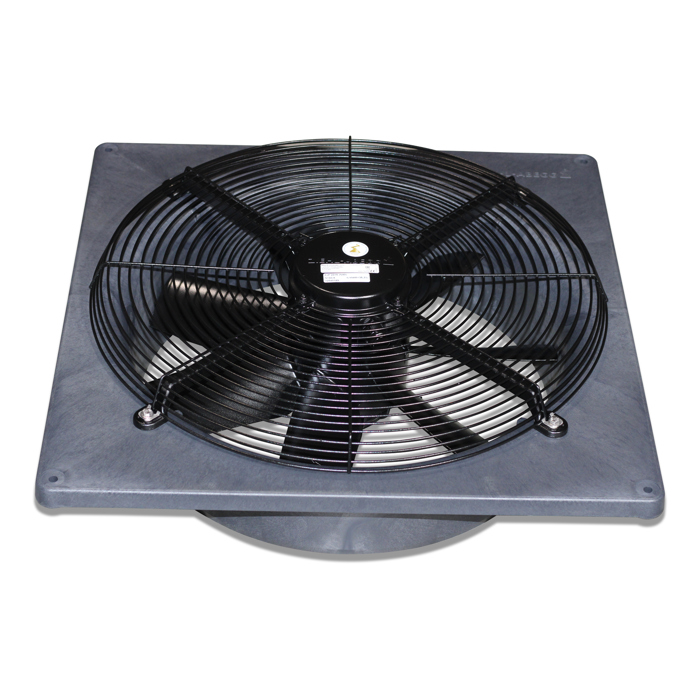

Fan FC050-4EQ 8000m³ 230V 450W 2.7A Kst

SKU

60-47-9152

Sales unit 1 pc

Dimensions
Length	655.00	mm
Width	655.00	mm
Height	220.00	mm
Actual weight	15.443	kg

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation at a wall

Rated values
Phases	1	Ph
Nominal frequency [Hz]	50	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Dimensions
Width	615	mm
Height	655	mm
Total depth	221	mm
Diameter	566	mm

Rated values 50 Hz
Elektrische Nennleistung	0.51	kW
Nominal voltage single-phase	230	V
Nominal current single-phase	2,3	A
Speed	1310	U/min
Ambient temperature	-25 - 40	°C
Sound power level Lw	76	dB
Sound pressure level Lp	51	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	7988	m³/h
Characteristic curve – 10 Pa	7801	m³/h
Characteristic curve – 20 Pa	7615	m³/h
Characteristic curve – 30 Pa	7431	m³/h
Characteristic curve – 40 Pa	7238	m³/h
Characteristic curve – 50 Pa	7033	m³/h
Characteristic curve – 60 Pa	6803	m³/h
Characteristic curve – 70 Pa	6573	m³/h
Characteristic curve – 80 Pa	6347	m³/h
Characteristic curve – 90 Pa	6091	m³/h
Characteristic curve – 100 Pa	5815	m³/h
Characteristic curve – 110 Pa	5481	m³/h

Spec. power 50 Hz
Characteristic curve – 0 Pa	53.8	W/(1000m³/h)
Characteristic curve – 10 Pa	56.4	W/(1000m³/h)
Characteristic curve – 20 Pa	58.4	W/(1000m³/h)
Characteristic curve – 30 Pa	61.2	W/(1000m³/h)
Characteristic curve – 40 Pa	63.5	W/(1000m³/h)
Characteristic curve – 50 Pa	68.2	W/(1000m³/h)
Characteristic curve – 60 Pa	71.3	W/(1000m³/h)
Characteristic curve – 70 Pa	74.7	W/(1000m³/h)
Characteristic curve – 80 Pa	78.8	W/(1000m³/h)
Characteristic curve – 90 Pa	83.1	W/(1000m³/h)
Characteristic curve – 100 Pa	87	W/(1000m³/h)
Characteristic curve – 110 Pa	90.1	W/(1000m³/h)

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
