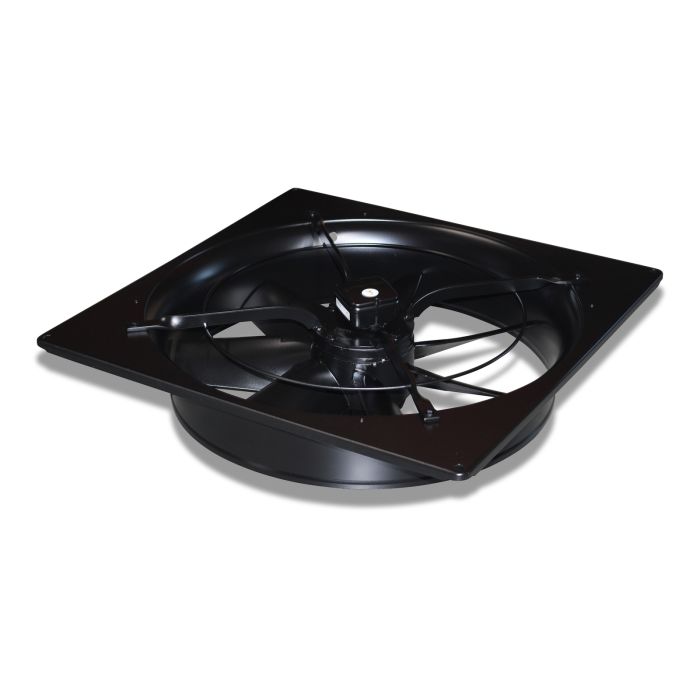

Fan FC071-6EQ 16450m³ 230V 785W 4.1A

SKU

60-47-9171

Sales unit 1 pc

Dimensions
Length	805.00	mm
Width	890.00	mm
Height	235.00	mm
Actual weight	36.720	kg

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation at a wall

Rated values
Phases	1	Ph
Nominal frequency [Hz]	50	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Dimensions
Width	810	mm
Height	850	mm
Total depth	272	mm
Diameter	765	mm

Rated values 50 Hz
Elektrische Nennleistung	0.89	kW
Nominal voltage single-phase	230	V
Nominal current single-phase	4,1	A
Speed	850	U/min
Ambient temperature	-25 - 60	°C
Sound power level Lw	79	dB
Sound pressure level Lp	54	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	16083	m³/h
Characteristic curve – 10 Pa	15653	m³/h
Characteristic curve – 20 Pa	15176	m³/h
Characteristic curve – 30 Pa	14669	m³/h
Characteristic curve – 40 Pa	14134	m³/h
Characteristic curve – 50 Pa	13556	m³/h
Characteristic curve – 60 Pa	13020	m³/h
Characteristic curve – 70 Pa	12399	m³/h

Spec. power 50 Hz
Characteristic curve – 0 Pa	44.1	W/(1000m³/h)
Characteristic curve – 10 Pa	46.6	W/(1000m³/h)
Characteristic curve – 20 Pa	49.4	W/(1000m³/h)
Characteristic curve – 30 Pa	53.1	W/(1000m³/h)
Characteristic curve – 40 Pa	56.2	W/(1000m³/h)
Characteristic curve – 50 Pa	60.1	W/(1000m³/h)
Characteristic curve – 60 Pa	62.9	W/(1000m³/h)
Characteristic curve – 70 Pa	65.7	W/(1000m³/h)

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
