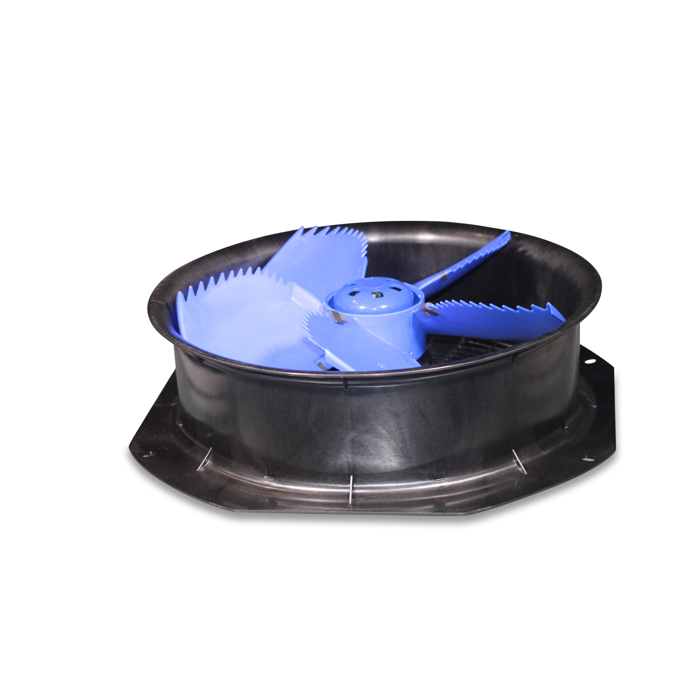

Fan ECblue FN035-4IL 230V 50/60Hz 1.45A f/Caravan Dimensions Length 553.00 mm Width 431.00 mm Height 146.00 mm Actual weight 3.441 kg
Basic data Montiert Mounted
Rated values Phases 1 Ph Nominal frequency [Hz] 50/60 Hz Control 0-10 V
Classification IP protection rating IP54 Certifications CE, UL Insulation class (DIN EN 60085) F
Rated values 50 Hz Elektrische Nennleistung 0.14 kW Nominal voltage single-phase 200-240 V Nominal current single-phase 1,45-1,2 A Speed 1660 U/min Ambient temperature -30 - 40 °C Sound power level Lw 65 dB Sound pressure level Lp 40 dB
Volumetric flow rate 50 Hz Characteristic curve – 0 Pa 3110 m³/h Characteristic curve – 10 Pa 2954 m³/h Characteristic curve – 20 Pa 2790 m³/h Characteristic curve – 30 Pa 2642 m³/h Characteristic curve – 40 Pa 2460 m³/h Characteristic curve – 50 Pa 2244 m³/h Characteristic curve – 60 Pa 1984 m³/h Characteristic curve – 70 Pa 1688 m³/h
Rated values 60 Hz Elektrische Nennleistung 0.14 kW Nominal voltage single-phase 200-240 V Nominal current single-phase 1,45-1,2 A Speed 1660 U/min Ambient temperature -30 - 40 °C Sound power level Lw 65 dB Sound pressure level Lp 40 dB
Illustrations may show accessories that are not included in the scope of delivery.
