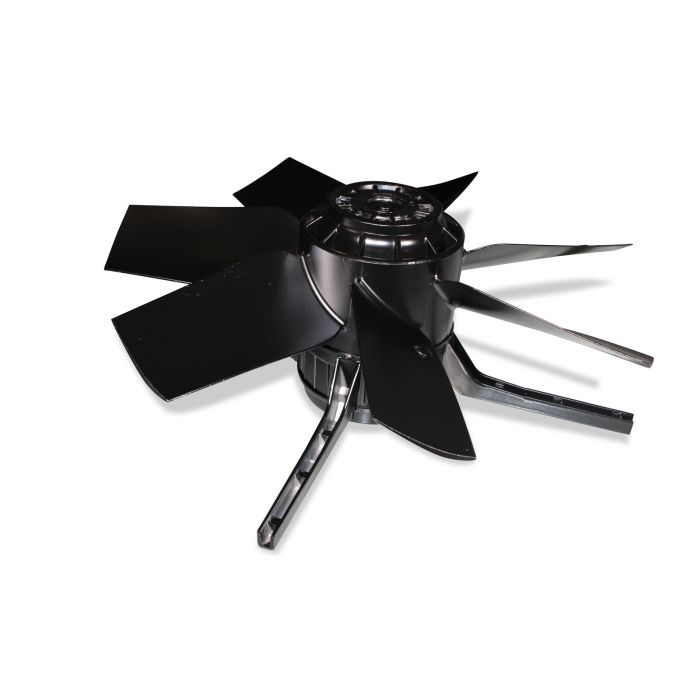

Fan FC050-4DT 8330m³ 400V 432W 1.3A f/tube

SKU

60-47-9550

Sales unit 1 pc

Dimensions
Length	493.00	mm
Width	486.00	mm
Height	196.00	mm
Actual weight	9.512	kg

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation in pipe
Chimney	500 - BD 520

Rated values
Phases	3	Ph
Nominal frequency [Hz]	50	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Rated values 50 Hz
Elektrische Nennleistung	0.53	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Nominal current delta connection	1,9	A
Nominal current star connection	1,1	A
Speed	1360	U/min
Power factor	0.7
Ambient temperature	-40 - 40	°C
Sound power level Lw	78	dB
Sound pressure level Lp	53	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	9000	m³/h
Characteristic curve – 10 Pa	8900	m³/h
Characteristic curve – 20 Pa	8500	m³/h
Characteristic curve – 30 Pa	8300	m³/h
Characteristic curve – 40 Pa	8000	m³/h
Characteristic curve – 50 Pa	7600	m³/h
Characteristic curve – 60 Pa	7300	m³/h
Characteristic curve – 70 Pa	7000	m³/h

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
